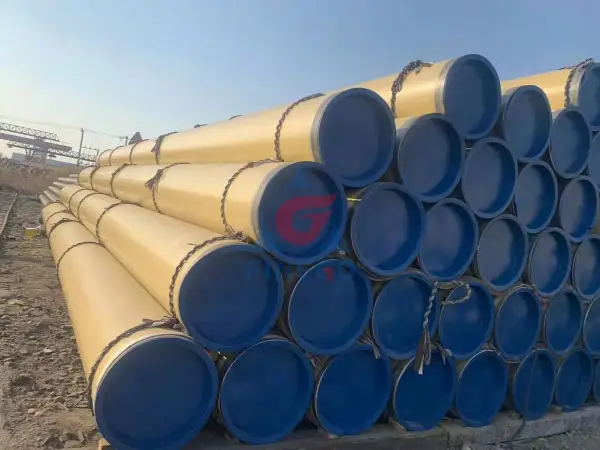

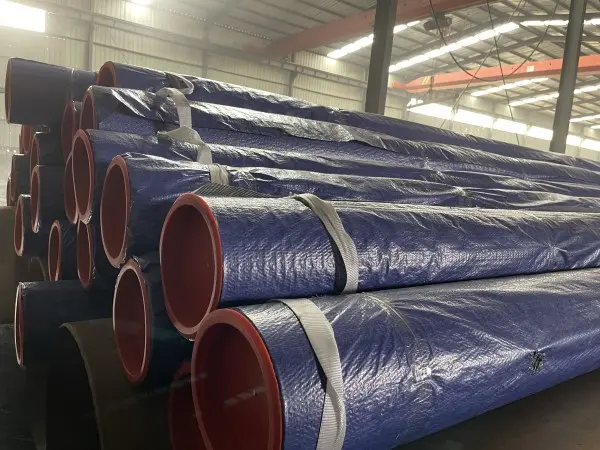

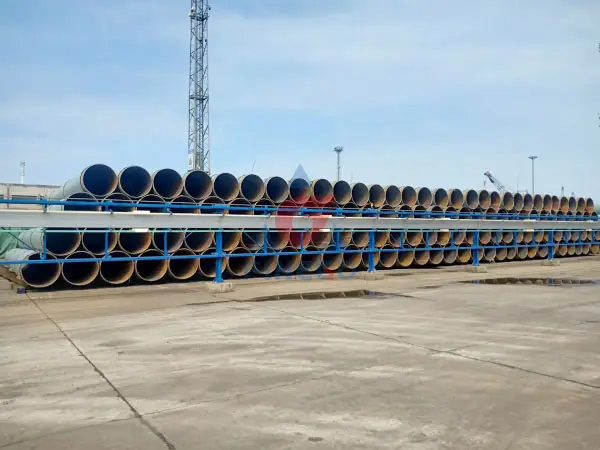

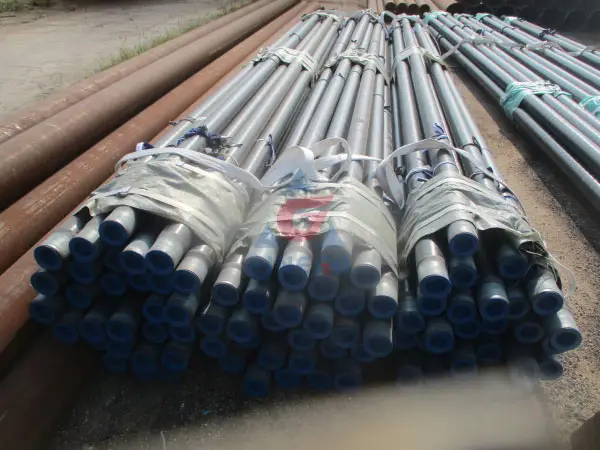

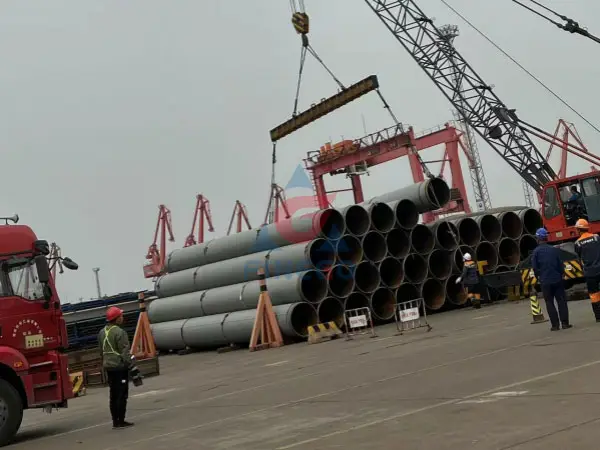

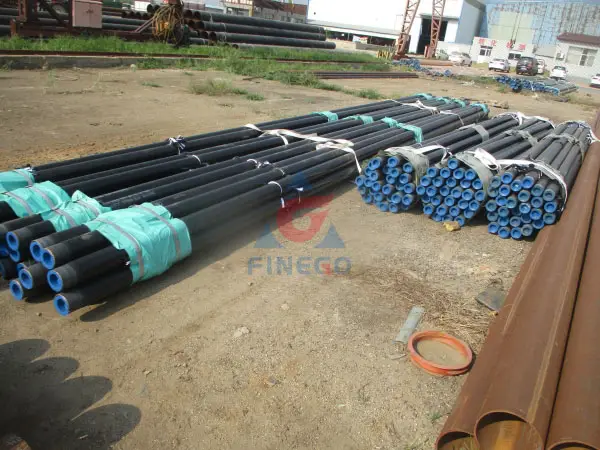

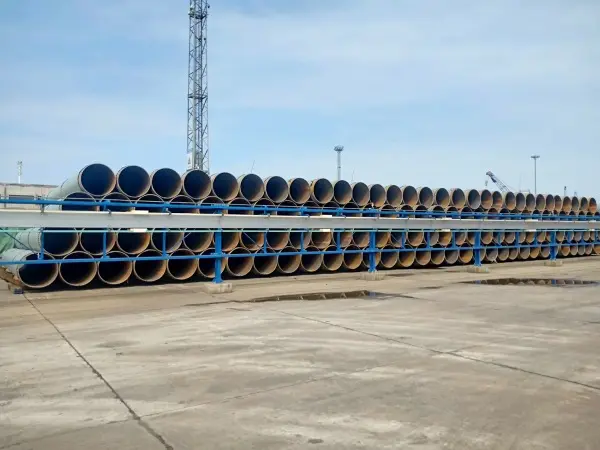

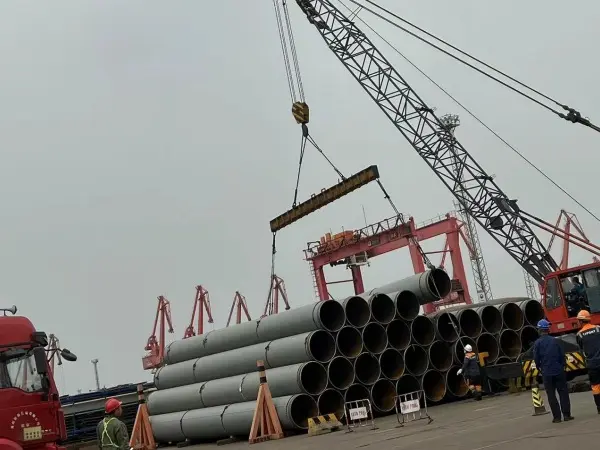

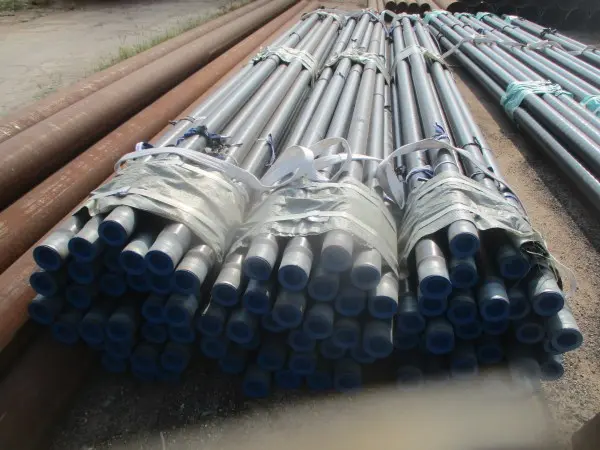

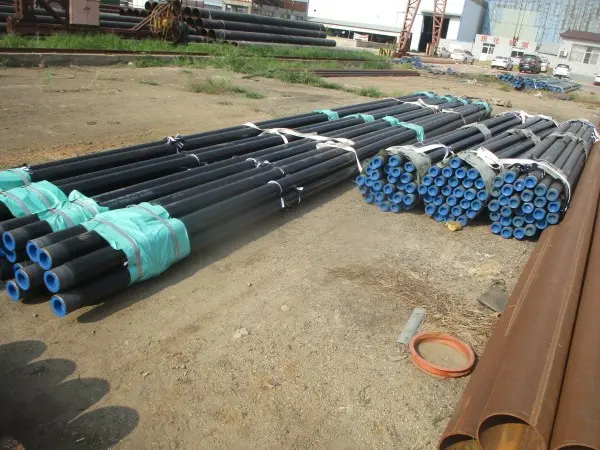

Epoxy Coated Pipe

Standard

API 5L

Grade

PSL-1

API 5L – Gr.B/X42/X46/X52/X60/X70 etc.

( Material)

PSL-2

ISO3183 – L245/L290/L320/L360/L415/L485 etc.

Minimum Order Quantity

1 Ton

Outside Diameter Ranges

PSL-1

0.405-80(in) or 10.3mm-2032mm

PSL-2

4 1/2 -80(in) or 114.3mm-2032mm

Wall Thickness Ranges

SCH10~SCH160  Or  STD,XS,XXS  Or  1.73mm~59.54mm

Length

For 20Ft Container

4.8m-5.8m

(negotiable)

For 40Ft Container

4.8m-12m

Most common choice

6m, 12m

Type

Welded

ERW,LSAW/SSAW

Seamless

Cold Drawn,Hot Finished,Hot Expanded

Cap (negotiable)

Pipe size should under DN600

Pipe End

Plain end

All sizes

Bevel end

Pipe size above DN50, and the thickness should greater than 3.2mm

Our advantages

·Diverse products(Steel pipes, pipe fittings, other fittings)

·Any third party inspection is accepted by we company.

·Quick response in quotation,delivery,after-service.

·Focus on pipe & tube solution for project application.

External Coating

Coating type

Coating Standard

3LPE/3LPP

DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009

2LPE/2LPP

SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009

FBE(Fusion-bond epoxy)

SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001

Bitumen coating

Enamel &Tape hot-applied

BS534-1990,AWWA203-2002,AWWA214-2000

Liquid epoxy coating

AWWWA C210-2007

Polyurethane insulated coating

SY/T0415-1996,CJ/T114-2000.EN253-1994

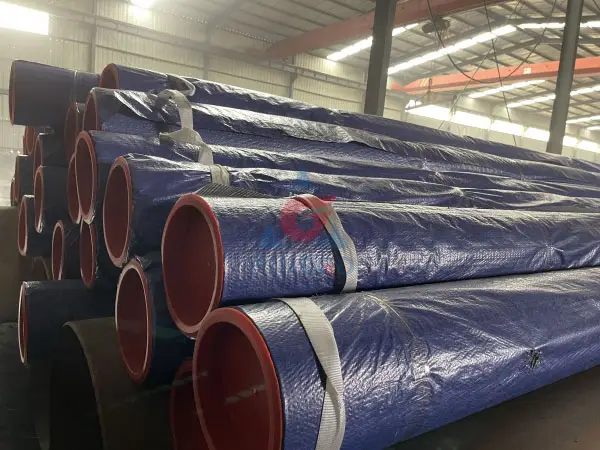

Internal Coating

Liquid Epoxy Coating

AWWAC210-2007

FBE

AWWAC213-2001

Cement Mortar Lining

BS534-1990,AWWA C205-2001

Bitumen Coating

BS534-1990

Coating Thickness

.004" to .006" per coat

Temperature Range

300°F maximum

Chemical Resistance (ASTM D543)

Excellent

Hardness (ASTM D3363)

> 8 H

Adhesion (ASTM D4541)

1933 psi

Coating Color

various options available

Standard of Epoxy Coated Pipe

AC298 Internal Epoxy Barrier Pipe Coating

AWWA C210 Liquid Epoxy Coating and Lining

IGC 189-2006 : Internal Epoxy Barrier Pipe Coating Material

NSF/ANSI Standard 61 -for Drinking Water Systems Components

AWWA C 213

CSA Z245.20

IS 3589 Annexure C

FBE Coated Pipe Marking

Manufacturer’s name, logo or trademark

Trade Designation

NSF SE

Color Code of Solvent Free Epoxy Coating

Yellow

Black

Green

Gray

Iron red

Light blue

.D.

O.D.

SCH 10

SCH 30/40

W.T.

NORMAL WEIGHT

W.T.

NORMAL WEIGHT

(mm)

(INCH)

(mm)

(inch)

(mm)

(inch)

(kg/mtrs)

(lbs/ft)

(mm)

(inch)

(kg/mtrs)

(lbs/ft)

15

1/2''

21.30

0.840

----

----

----

----

2.77

0.109

1.27

0.85

20

3/4''

26.70

1.050

2.11

0.083

1.28

0.96

2.87

0.113

1.69

1.13

25

1''

33.40

1.315

2.77

0.109

2.09

1.41

3.38

0.133

2.50

1.68

32

1.1/4''

42.20

1.660

2.77

0.109

2.69

1.81

3.56

0.140

3.39

2.27

40

1.1/2''

48.30

1.900

2.77

0.109

3.11

2.09

3.68

0.145

4.05

2.72

50

2''

60.30

2.375

2.77

0.109

3.93

2.64

3.91

0.154

5.45

3.66

65

2.1/2''

73.00

2.875

3.05

0.120

5.26

3.53

5.16

0.203

8.64

5.80

80

3''

88.90

3.500

3.05

0.120

6.46

4.34

5.49

0.216

11.29

7.58

90

3.1/2''

101.60

4.000

3.05

0.120

7.41

4.98

5.74

0.226

13.58

9.12

100

4''

114.30

4.500

3.05

0.120

8.37

5.62

6.02

0.237

16.09

10.80

125

5''

141.30

5.563

3.40

0.134

11.58

7.78

6.55

0.258

21.79

14.63

150

6''

168.30

6.625

3.40

0.134

13.85

9.30

7.11

0.280

28.29

18.99

200

8''

219.10

8.625

4.78

0.188

25.26

16.96

7.04

0.277

36.82

24.72

250

10''

273.10

10.750

4.78

0.188

31.62

21.23

7.08

0.307

51.05

34.27
