Welded Steel Pipe

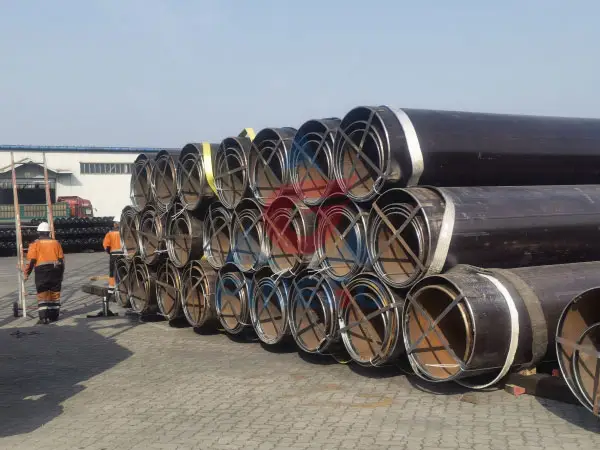

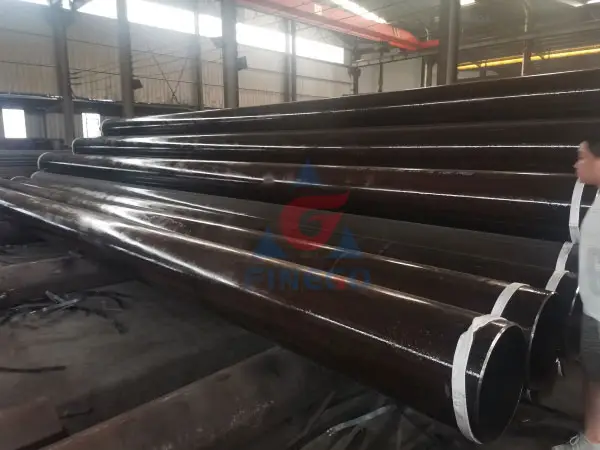

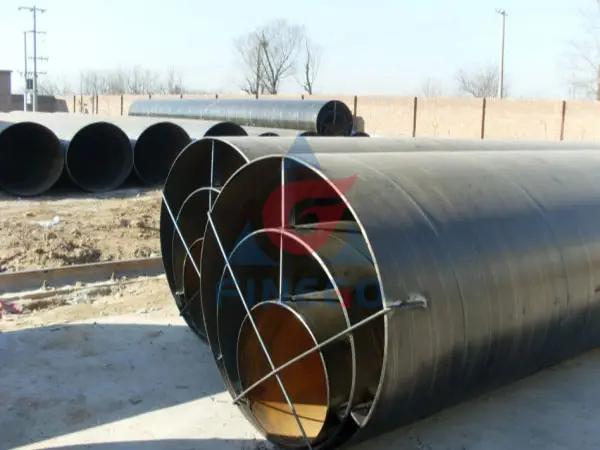

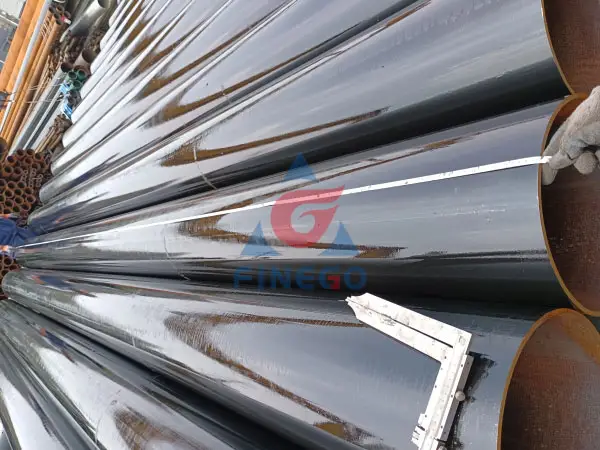

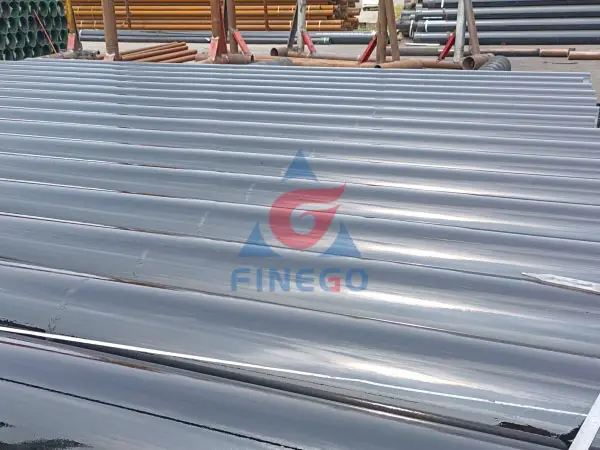

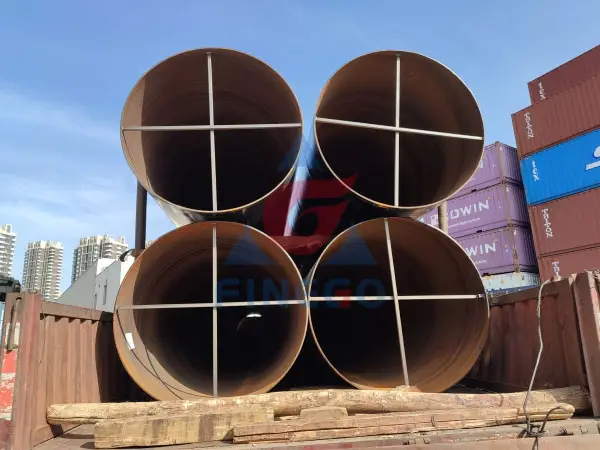

EN 10217 Steel Pipe
EN 10217 pipe is a non-steel alloy that is intended for pressure applications. There are different parts of the same EN 10217-1 pipe specification that have different mechanical and physical properties with varying dimensions. The DIN EN 10217-7 pipe diameters for the EFW pipes vary from 5mm to 1219.2mm. The schedules range from sch5 through xxs and heavier. The EN 10217 welded steel pipe is produced by electric resistance welding. The pipe length can vary from single random, double random to custom cut to length sizes. The EN 10217 ERW pipe can be made with larger diameter. There are different grades under the same specification and they have carbon, silicon, manganese, phosphorus, sulfur, chromium, molybdenum, nickel and nitrogen in the composition.
Schedule: Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer
Size: 5 to 1219.2mm
Length: Double Random, Single Random, Standard & Cut length
Finish: BA, Polished, AP, MF
Form: Square, Hydraulic, Rectangular, Clad, U bent, Boiler, Hollow, LSAW, Straight, Round
Wall Thickness: 0.020 to 0.220
Standard
Specification
Size in Mm |
5 To 1219.2 |
Schedule |
Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer |
Standard |
JIS, EN, DIN, GB, IS, AISI, ASME, ASTM |
Seamless Pipe Size in MM |
4 to 219 Wall thickness: 0.5 to 20 |
Welded Pipe Size in MM |
5 to 1219.2 |
Seamless Tube Size in MM |
3.35 To 101.6 |
Length |
Double Random, Single Random, Standard & Cut length |
Finish |
BA, Polished, AP, MF |
Form |
Square, Hydraulic, Rectangular, Clad, U bent, Boiler, Hollow, LSAW, Straight, Round, |
Wall Thickness in inch |
0.020 to 0.220 |
Type |
U bent, Straight, Seamless, Round, Welded, EFW, Tube Coil, ERW, Hydraulic, LSAW, Square, Fabricated, Boiler, Rectangular |
End |
Beveled, Plain, Treaded |
Pipe Marking |
All Pipes are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number |
Tolerances:
Characteristic |
Tolerance |
Outside diameter: D≤114,3 |
±1% or +/-0,5 |
Off-roundness |
For tubes of outside diameter D ≤ 114,3 mm, out-of-roundness shall be included in the limits of the diameter tolerances. |
Wall thickness (T): ≤5 |
+/-10% or +/-0,3 mm Whichever is the greater. |
Wall thickness (T): >5 |
+/-8% or +/-2 mm, Whichever is the smaller. |
Height of the internal weld seam |
The maximum height of the internal weld seam, after trimming shall be 1,5 mm |
Outside |
Trimmed |
Straightness |
The deviation from straightness, of any tube length L, shall not exceed 0,0015L. Deviations from straightness over any one metre length shall not exceed 3mm |
Weight (M) |
For the mass per unit length the provisions of ENV 10220 apply |
Standard length |
≥ 6000 mm: 0/+50 mm |
Mechanical Properties:
Steel Grade |
Yield strength (Mpa) min |
Tensile strength (Mpa) |
Elongation (%) min |
P195TR1 |
195 |
320-440 |
27 |
P195TR2 |
195 |
320-440 |
27 |
P235TR1 |
235 |
360-500 |
25 |
P235TR2 |
235 |
360-500 |
25 |
P265TR1 |
265 |
410-570 |
21 |
P265TR2 |
265 |
410-570 |
21 |
Chemical Composition:
Steel |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
Cu |
Nb |
Ti |
V |
|
Grade |
Number |
max |
max |
max |
max |
max |
max |
max |
max |
max |
max |
max |
max |
P195TR1 |
1.0107 |
0.13 |
0.35 |
0.7 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
P195TR2 |
1.0108 |
0.13 |
0.35 |
0.7 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
P235TR1 |
1.0254 |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
P235TR2 |
1.0255 |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
P265TR1 |
1.0258 |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
P265TR2 |
1.0259 |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
0.3 |
0.08 |
0.3 |
0.3 |
0.01 |
0.04 |
0.02 |
Process
Hot rolled strip or normalized strip, cold formed, HFW welding and normalization through cold forming, HFW welding and hot reduction and normalization through cold forming, welding and hot reduction in the temperature adequate to obtain the normalized state.
Normalized rolled strip, cold formed, HFW welding and weld or tube normalization.
Hot rolled sheets or strips, cold forming, SAW welding and normalization.
