Seamless Steel Pipe

ASTM A213 Steel Tube

Outer Diameter: 6mm-114.3mm
Wall Thickness: 0.8mm-4mm
Length: 1-12.5m, customize size.

Standard & Grade: Asme sa 213  american society of mechanical engineers; astm a213m american society for testing and materials

Ends: Pe/plain ends, be/beveled ends

Usage: For manufacture wall panel, economizer, reheater, superheater and steam pipeline of boilers.

Coating: Mechanical polish, electropolish, satin finish, passivated

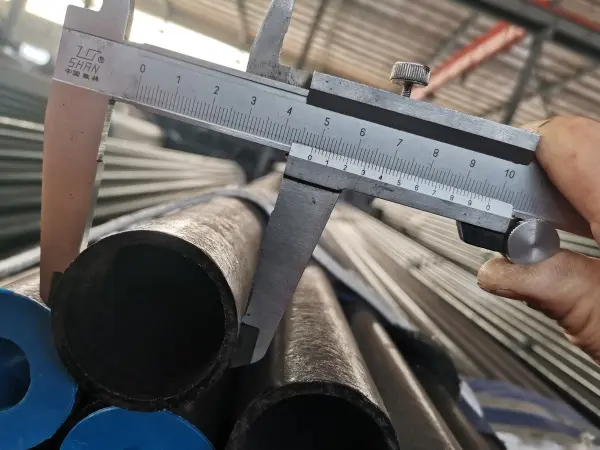

Dimension: All Tubes are Manufactured and Tested / Inspected to the Relevant standards including ASTM and ASME

Delivery: Within 30 days and depends on your order quantity

Packing: Standard seaworthy package


Specification

There was increasing demand for tubes suitable for high-temperature services like boiler vessels and others. Stainless steel tubes with only chromium for corrosion resistance were only valuable in part because of not have enough strength to withstand high temperatures.


ASTM A213 is a common used specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchanger Tubes, offering manufacture and purchasing requirements for manufactures and users, main information contain grade, size, finishes, test and other terms, the equivalent standard is ASME SA213.


ASTM A213 pipe made of the many grades of A213 steel are chrome-moly pipes with chromium, molybdenum, and small quantities of manganese and silicon. It is best for many applications in various sectors to provide corrosion resistance even at high temperatures.


ASTM A213 Chemical Composition:

Grade

C

Si

Mn

Cr

Ni

Mo

S

P

Fe


Max, %

Max, %

Max, %

%

%

%

Max, %

Max, %

%

TP304

0,08

1,0

2

18 – 20

8 – 11

0,03

0,045

Bal

TP304L

0,035

1,0

2

18 – 20

8 – 12

0,03

0,045

Bal

TP316

0,08

1,0

2

16 – 18

11 – 14

2 – 3

0,03

0,045

Bal

TP316L

0,035

1,0

2

16 – 18

10 – 14

2 – 3

0,03

0,045

Bal

TP321

0,08

1,0

2

17 – 19

9 – 12

0,03

0,045

Bal


ASTM A213 Mechanical Properties And Solution Temperature (Min, Degree Centigrade):

Grade

Tensile Strength

Yield Point

Elongation

Hardness(HRB)

Solution Temperature


Min, Mpa

Min, Mpa

Min, %

Max Rockwell

Min, OC,

TP304

515

205

35

90

1040

TP304L

485

170

35

90

1040

TP316

515

205

35

90

1040

TP316L

485

170

35

90

1040

TP321

515

205

35

90

1040


ASTM A213 Seamless Tube Sizes And Dimensions:

The tubing sizes and thicknesses usually furnished to this specification are 1/8 inch [3.2 mm] in inside diameter to 5 inch [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm].

Custom outside diameter and wall thickness are listed as below, tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.


Common Outside Diameter Of A213 Tubes:

15.8, 16.0, 19.05, 22, 25, 28, 38.1, 57, 60.3, 76.2, 88.9, 101.6 mm


Common Wall Thickness Of A213 Tubes:

WT: 0.889, 1.245, 1.651, 2.0, 2.11, 2.769, 3.404mm etc;

Outside Diameter

Outside Diameter

BWG

BWG

BWG

BWG

BWG

BWG

BWG

BWG



25

22

20

18

16

14

12

10



WT Mm

WT Mm

WT Mm

WT
Mm

WT Mm

WT Mm

WT Mm

WT
Mm



0.508

0.71

0.89

1.24

1.65

2.11

2.77

3.40

Mm

Inch

Kg/M

Kg/M

Kg/M

Kg/M

Kg/M

Kg/M

Kg/M

Kg/M

6.35

1/4

0.081

0.109

0.133

0.174

0.212




9.53

3/8

0.126

0.157

0.193

0.257

0.356

0.429



12.7

1/2


0.214

0.263

0.356

0.457

0.612

0.754


15.88

5/8


0.271

0.334

0.455

0.588

0.796

0.995


19.05

3/4


0.327

0.405

0.553

0.729

0.895

1.236


25.4

1


0.44

0.546

0.75

0.981

1.234

1.574

2.05

31.75

1 1/4


0.554

0.688

0.947

1.244

1.574

2.014

2.641

38.1

1 1/2


0.667

0.832

1.144

1.514

1.904

2.454

3.233

44.5

1 3/4




1.342

1.774

2.244

2.894

3.5

50.8

2




1.549

2.034

2.574

3.334

4.03

63.5

2 1/2




1.949

2.554

3.244

4.214

5.13

76.2

3




2.345

3.084

3.914

5.094

6.19

88.9

3 1/2




2.729

3.609

4.584

5.974

7.27

101.6

4





4.134

5.254

6.854

8.35

114.3

4 1/2





4.654

5.924

7.734

9.43


ASTM A213 Tolerances, Outside Diameter, Wall Thickless And Length:
Cold Finished Seamless Tubes:

OD

OD Tolerance

OD Tolerance

WT Tolerance

WT Tolerance

Length Tolerance

Length Tolerance

Mm

Over

Under

Over

Under

Over

Under

Under 25.4

0.1016

0.1016

+20

-0

3.175

0

25.4-38.1 Incl

0.1524

0.1524

+20

-0

3.175

0

38.1-50.8 Excl

0.2032

0.2032

+22

-0

3.176

0

50.8-63.5 Excl

0.254

0.254

+22

-0

4.46

0

63.5-76.2 Excl

0.3048

0.3048

+22

-0

4.76

0

76.2-101.6 Incl

0.381

0.381

+22

-0

4.76

0

101.6-190.5 Incl

0.381

0.635

+22

-0

4.76

0

190.5-228.6 Incl

0.381

1.143

+22

-0

4.76

0


Hot Finished Seamless Tubes:

Outside Diameter, Mm

Tolerance, Mm

OD≤101.6

+0.4/-0.8

101.6<OD≤190.5

+0.4/-1.2

190.5<OD≤228.6

+0.4/-1.6


Hot Rolled Wall Thickness & Tolerance:

Outside Diameter, Mm

Tolerance, %

OD≤101.6, WT≤2.4

+40/-0

OD≤101.6, 2.4<WT≤3.8

+35/-0

OD≤101.6, 3.8<WT≤4.6

+33/-0

OD≤101.6, WT>4.6

+28/-0

OD>101.6, 2.4<WT≤3.8

+35/-0

OD>101.6, 3.8<WT≤4.6

+33/-0

OD>101.6, WT>4.6

+28/-0


ASTM A213 Wall Thickness Tolerances:

ASTM A213 specifies Minimum wall thickness, namely, there is no mill undertolerance, only overtolerance, unless specified as average wall thickness is requied, permissible variations from the specified average wall thickness shall be +/-10 % of the specified average wall thickness for cold formed tubes.

Seamless tubing furnished to this specification shall conform to the requirements of Specification ASTM A1016/A1016M, including any supplementary requirements.

Process

Manufacturing processes:

The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified.

Heat treatment shall be done separately and in addition to heating for hot forming.

The ferritic alloy and ferritic stainless steels shall be reheated. austenitic stainless steel tubes shall be furnished in the heat-treated condition.

Tubes may be individually quenched in water or rapidly cooled by other means.

Tubes shall be pickled free of scale. when bright annealing is used, pickling is not necessary.

Complete tests should be conducted conforming to astm a213 or astm a1016.


ASTM A213 testing requirement:

Each tube shall be subjected to the nondestructive electric test or hydrostatic test, manufacturer material test certification as per en 10204 3.1 should be provided.

Tensile property, elogation

Hardness testing, brinell, rockwell, vickers hardness

Flattening testing

Flaring testing

Hydrostatic or nondestructive test

Intergranular corrosion test – astm a262/e (option)

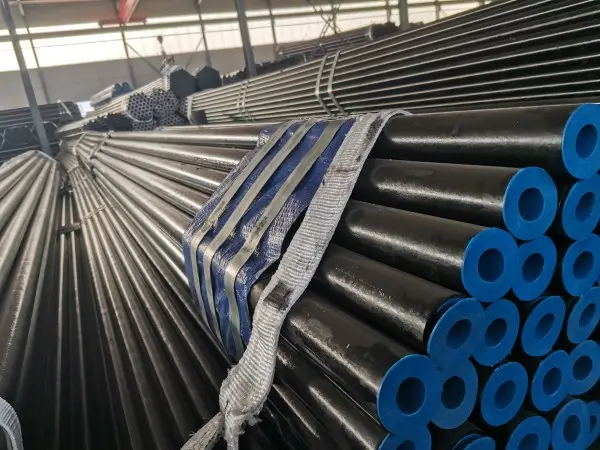

Packing

  • Wooden case packing + steel belts bundled + two nylon slings

    Wooden case packing + steel belts bundled + two nylon slings

  • Wooden case packing + steel belts bundled

    Wooden case packing + steel belts bundled
