What Is LSAW Pipe and How Does It Compare to ERW Pipe?

Are pipeline failures ruining your projects? Picking the wrong steel pipe wastes money and causes huge delays. We will solve this pipeline problem together right now. What is LSAW pipe? LSAW stands for Longitudinal Submerged Arc Welding. It is a steel pipe made from hot-rolled steel plates with a straight seam. Manufacturers use submerged arc welding to join the edges. This pipe is ideal for high-pressure, large-diameter oil, gas, and heavy construction projects.

Choosing the wrong pipe ruins your budget and puts your whole project at risk. But looking closely at the production differences makes your final choice completely obvious. Let us explore the key differences below.

How Do LSAW and ERW Raw Materials Differ?

Do production limits delay your delivery times? ERW and LSAW pipes use completely different raw materials. This single difference changes your project timeline completely. ERW pipes use hot-rolled steel coils. This allows continuous and fast production up to 660mm in diameter. LSAW pipes use individual hot-rolled steel plates. This slows down production but allows massive diameters up to 1422mm and thick walls up to 40mm.

Steel Coils vs. Steel Plates

ERW pipe production uses hot-rolled steel coils. Workers feed these coils into a machine without stopping. This continuous work is very fast. The factory produces many ERW pipes in one day. The production cost stays very low. But steel coils have limits. They are never extremely thick. LSAW pipe production uses hot-rolled steel plates. Workers handle one single plate at a time. The assembly line stops and starts. This makes the work much slower. The production cost goes up. But steel plates offer incredible thickness and width.

Size Limits for Your Project

I work at Finego Steel. I see many EPC buyers make a common mistake here. You might want cheap ERW pipes for fast delivery. But your project needs a 40mm wall thickness. ERW cannot reach 40mm. ERW stops at 25mm thickness. You must choose LSAW. LSAW plates allow a massive 1422mm diameter. They give you the huge sizes needed for major construction work.

What Are the Different Forming Methods for LSAW Pipes?

Do you worry about pipe shape accuracy during field installation? Bad pipe joints cause huge welding delays. Knowing how factories form LSAW pipes solves this problem quickly. LSAW pipes use several forming methods, mainly UOE, JCOE, and HME. UOE bends the plate into a U shape, then an O shape, followed by cold expansion. JCOE presses the plate in steps resembling J, C, and O shapes before welding.

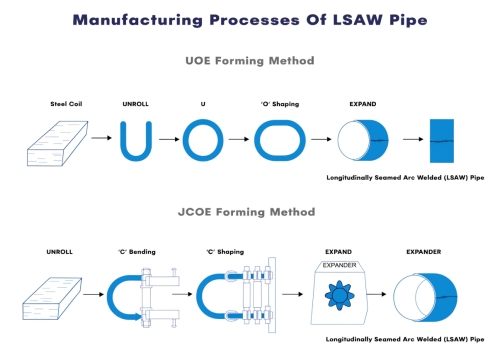

The UOE Forming Process

Factories use different methods to shape these pipes. UOE is a very famous forming method. The machine bends the flat steel plate carefully. First, it forms a U shape. Next, it forms an O shape. Then workers weld the inside and outside seams. Finally, the machine expands the pipe coldly. This cold expansion makes the pipe perfectly round. Perfect roundness helps you during field installation. Your field welders can join the pipes easily. This exact fit saves your company valuable time.

The JCOE and HME Methods

JCOE is another great forming method. The press machine pushes the steel plate many times. It makes a J shape, then a C shape, then an O shape. After that, workers weld and expand the pipe. HME uses a special mandrel rolling tool to shape the steel. Multi-wire welding removes internal stress from the metal. The first welding wire fixes the stress inside the joint. This improves the pipe strength greatly. Learning what is lsaw pipe helps you choose the right method. I always tell my clients to trust these methods for high-pressure gas lines.

How Do Welding, Appearance, and Cost Compare?

Are budget overruns keeping you awake at night? Pipe costs and welding types vary greatly between models. We must break down these exact cost factors now. ERW pipes use electrical resistance without adding welding wire, creating a smooth surface. LSAW uses submerged arc welding with added wire, leaving a visible seam. ERW costs 15% to 25% less, but LSAW offers superior overall mechanical performance for tough projects.

Welding and Appearance

When you ask what is lsaw pipe, you must look closely at the weld. ERW melts the base metal edges together directly. It uses high-frequency electricity. It does not use any extra welding wire. Workers easily cut away the extra weld metal inside and outside. The pipe wall becomes very smooth. A smooth wall makes anti-corrosion coating very simple. LSAW uses submerged arc welding. It adds extra metal wire to the joint. This creates a raised seam on the pipe wall. Sometimes this raised seam makes external corrosion protection harder. But the multi-wire weld is extremely strong. Inspectors test the base metal with ultrasonic tools completely. This ensures zero defects in the material.

Purchase Cost and Sourcing

ERW pipes cost much less money. You save 15% to 25% on the overall price. ERW is cheap and very easy to buy. LSAW pipes cost more money. Finding a good LSAW factory is sometimes difficult. Few factories make them perfectly. But big projects demand them. Finego Steel solves this sourcing problem for you directly. We supply these heavy-duty pipes to EPC companies worldwide. We give you fair prices and perfect quality every time.

Conclusion

LSAW pipes provide unmatched strength and massive diameters for your toughest engineering projects. Finego Steel delivers top-quality LSAW solutions to meet your exact demands and protect your budget perfectly.
