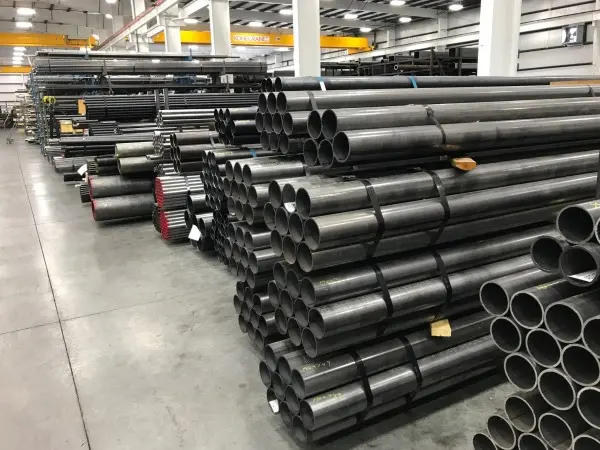

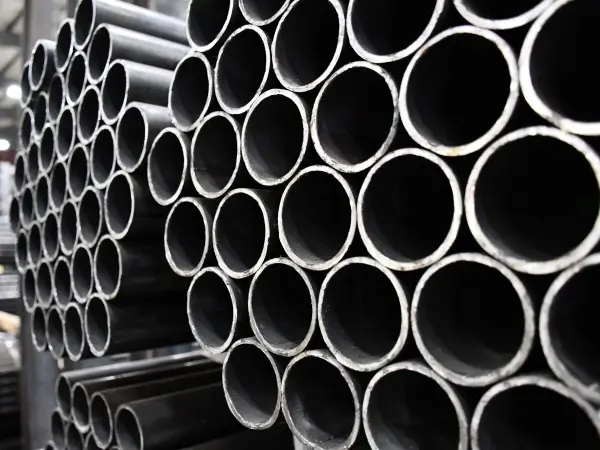

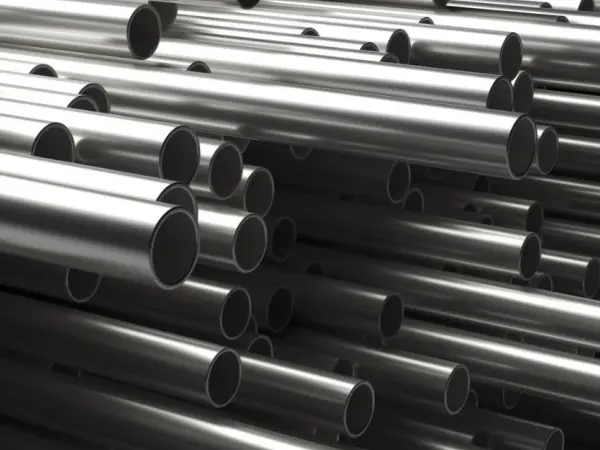

Steel Section

Structural Steel Pipe

Application: In structural engineering and construction industry

OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: Sch 10 ~ 160, sch std, sch xs, sch xxs

Length: Fixed length (5.8/6/11.8/12mtr), srl, drl

Standard: ASTM a53/a252/a500/a501, jis g3444, en 10210/10219

Ends: Square ends/plain ends (straight cut, saw cut, torch cut), beveled/threaded ends

Surface: Bare, lightly oiled, black/red/yellow painting, zinc/anti-corrosive coating

GET A QUOTE

Standard

Specification

Structural pipe is steel pipe which has not been pressure tested which is used in many applications across various industries. Structural steel pipe sizes range from 1/2″ to 48″ outer diameter and it is made from carbon, stainless, or galvanized steel. Structural pipe is also referred to as structural tubing.


Structural steel pipe is a great choice in construction, agricultural, and recreational settings. It is ideal for creating sturdy and reliable fence building frameworks, ensuring safety and security for livestock and property. For cattle guards and horse arenas, structural steel pipe provides the necessary strength and durability to withstand heavy use and environmental stress. In feedlots, the structural integrity of our pipe ensures the safe containment and management of livestock. Structural pipe is excellent for constructing robust frameworks in recreational facilities, sports complexes, and more, underscoring their utility in various sectors.


Specification of Structural Steel Pipe:

API 5L/ASTM A106 GR.B, Structural Steel Pipe

DN

OD(mm)

SCH40(6m/5.8m)

SCH40(6m/5.8m)

SCH40(6m/5.8m)

WT

WT

WT

(mm)

(mm)

(mm)

1/4''

13.7

2.24

3.02

/

3/8''

17.1

2.31

3.2

/

1/2''

21.3

2.77

3.73

4.78

3/4''

26.7

2.87

3.91

5.56

1''

33.4

3.38

4.55

6.35

1-1/4''

42.2

3.56

4.85

6.35

1-1/2''

48.3

3.68

5.08

7.14

2''

60.3

3.91

5.54

8.74

2-1/2''

73

5.16

7.01

9.53

3''

88.9

5.49

7.62

11.13

3-1/2''

101.6

5.74

8.08

/

4''

114.3

6.02

8.56

13.49

5''

141.3

6.55

9.53

15.88

6''

168.3

7.11

10.97

18.26

8''

219.1

8.18

12.7

23.01

10''

273

9.27

15.09

28.58

12''

323.8

10.31

17.48

33.32

14''

355.6

9.53

11.13

19.05

16''

406.4

9.53

12.7

21.44

18''

457

9.53

14.27

23.83

20''

508

9.53

15.09

26.19

24''

610

9.53

17.48

30.96


Structural Steel Pipe Chemical Composition and Mechanical Properties:

Standard

Grade

Chemical Composition (%)

ASTM A53

C

Si

Mn

P

S

Tensile STrength(Mpa)

Yield STrength(Mpa)

A

≤0.25

-

≤0.95

≤0.05

≤0.06

≥330

≥205

B

≤0.30

-

≤1.2

≤0.05

≤0.06

≥415

≥240

ASTM A106

A

≤0.30

≥0.10

0.29-1.06

≤0.035

≤0.035

≥415

≥240

B

≤0.35

≥0.10

0.29-1.06

≤0.035

≤0.035

≥485

≥275

ASTM A179

A179

0.06-0.18

-

0.27-0.63

≤0.035

≤0.035

≥325

≥180

ASTM A192

A192

0.06-0.18

≤0.25

0.27-0.63

≤0.035

≤0.035

≥325

≥180

API 5L PSL1

A

0.22

-

0.90

0.030

0.030

≥331

≥207

B

0.28

-

1.20

0.030

0.030

≥414

≥241

X42

0.28

-

1.30

0.030

0.030

≥414

≥290

X46

0.28

-

1.40

0.030

0.030

≥434

≥317

X52

0.28

-

1.40

0.030

0.030

≥455

≥359

X56

0.28

-

1.40

0.030

0.030

≥490

≥386

X60

0.28

-

1.40

0.030

0.030

≥517

≥448

X65

0.28

-

1.40

0.030

0.030

≥531

≥448

X70

0.28

-

1.40

0.030

0.030

≥565

≥483

API 5L PSL2

B

0.24

-

1.20

0.025

0.015

≥414

≥241

X42

0.24

-

1.30

0.025

0.015

≥414

≥290

X46

0.24

-

1.40

0.025

0.015

≥434

≥317

X52

0.24

-

1.40

0.025

0.015

≥455

≥359

X56

0.24

-

1.40

0.025

0.015

≥490

≥386

X60

0.24

-

1.40

0.025

0.015

≥517

≥414

X65

0.24

-

1.40

0.025

0.015

≥531

≥448

X70

0.24

-

1.40

0.025

0.015

≥565

≥483

X80

0.24

-

1.40

0.025

0.015

≥621

≥552


Structural Steel Pipe Chemical Composition and Mechanical Properties:

Standard

Grade

Chemical Composition

Mechanical Properties

C

Si

Mn

P

S

Cr

Ni

Cu

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

10

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.035

≤0.15

≤0.25

≤0.25

335-457

≥205

≥24

20

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.035

≤0.25

≤0.25

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

≤0.045

-

-

-

490-665

≥325

≥21


Structural Steel Pipe Tolerance:

Pipe types

Pipe Szie(mm)

Tolerances

Hot rolled

OD

All

±1% (min ±0.50mm)

WT

All

+15%, -12.5%

Cold drawn

OD

6～10

±0.20mm

10～30

±0.40mm

30～50

±0.45mm

>50

±1%

WT

≤1

±0.15mm

>1～3

+15% -10%

>3

+12.5% -10%


Structural Steel Pipe End:

Plain End

Wall Thickness less than 0.5 inch, including SCH STD & SCH XS

Plain End (Square Cut)

Wall Thickness over 0.5 inch, including SCH XXS

Beveled End

Wall Thickness less than 0.5 inch, including SCH STD & SCH XS

Couplings

Outside Diameter equal or less than 2''

Thread Protection

Outside Diameter over 4 inch

Process

Round bars→Inspection→Peeling→Cut to length→Grinding→Centering→Heating→Piercing→Pickling→Head cutting→Grinding→Cold rolling\cold drawing→Degrease→Heat treatment→Straightening→Cutting→Pickling→Product inspection→Cutting→Packing storage

Packing

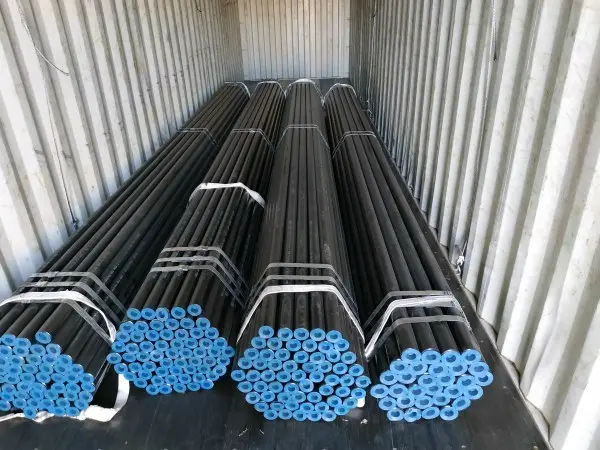

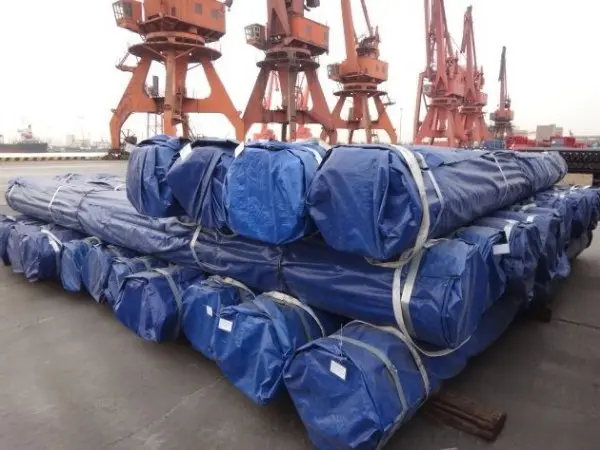

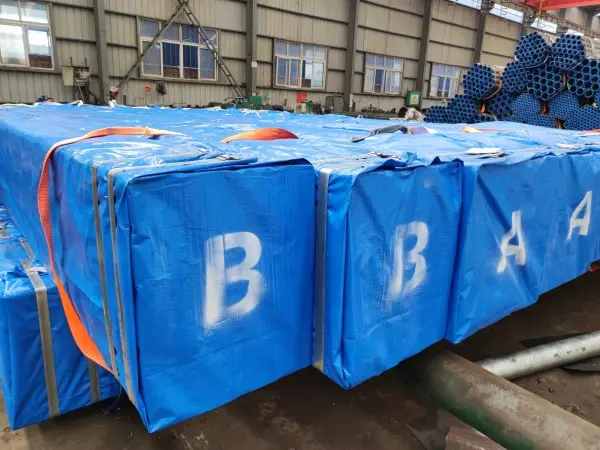

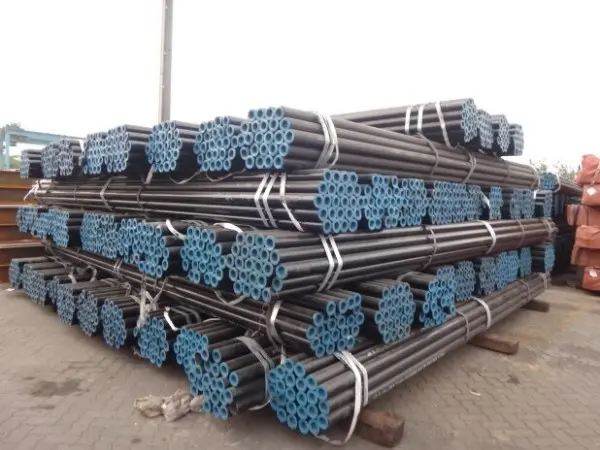

  • Structural Steel Pipe Packing

    Structural Steel Pipe Packing

  • Structural Steel Pipe Packing

    Structural Steel Pipe Packing

  • Structural Steel Pipe Packing

    Structural Steel Pipe Packing

  • Structural Steel Pipe Packing

    Structural Steel Pipe Packing
