Flange&Pipe Fittings

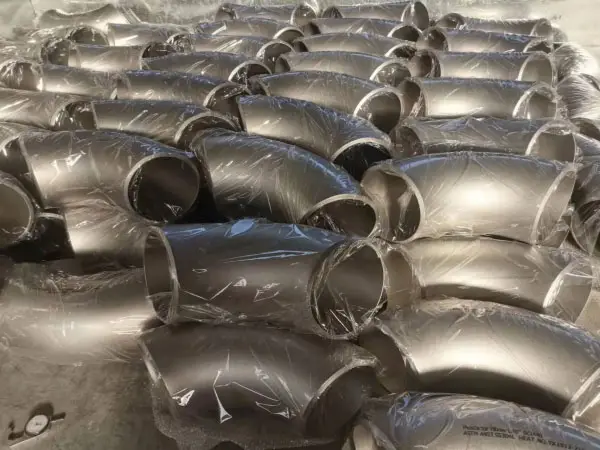

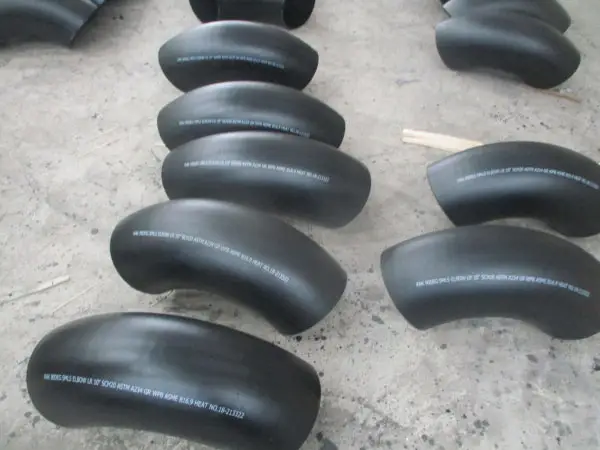

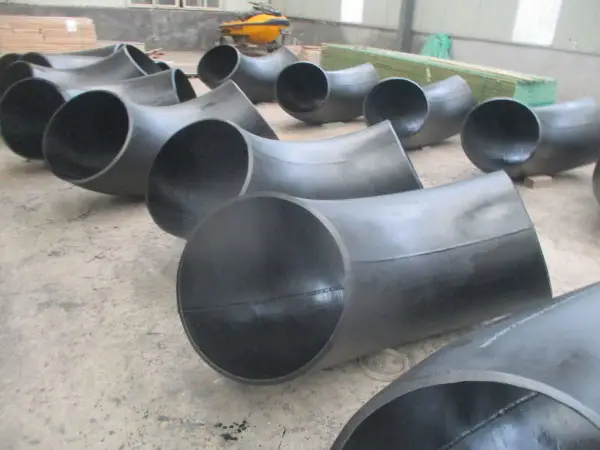

Elbow

OD: 1/2"-24" seamless, 26"-60" welded

WT: sch5s,10s,10,40s,std,xs,80s,xxs,40,60,80,160,xxs

Furface: pickled, sand blasting, rolling blast, brighten ,polished ,galvinizing ,vanished

Standard: ansi b16.9, en10253-4, din 2605, gost 17375, jis b2313, mss sp 75

End: bevel end/pe/buttweld

GET A QUOTE

Standard

Specification

Pipe elbows are used to be installed between two lengths of pipe or tube allowing a change of direction,usually these elbows distinguished by connection ends.


Types:

Elbow could be ranged from direction angle, connection types, length and radius, material types.

Size:

OD: 1/2"-24" seamless, 26"-60" welded

WT: SCH5S,10S,10,40S,STD,XS,80S,XXS,40,60,80,160,XXS

30° 45° 60° 90° 180°,etc

LR/long radius=1.5D,SR/Shrot radius=1D, various radius: 3D,4D,5D,6D,7D

Pipe Standard:

ANSI B16.9, EN10253-4, DIN 2605, GOST 17375, JIS B2313, MSS SP 75

Stainless Steel A403 WP 304/L,316/L,321,310S,347H,317,316Ti,904L

ASTM A234 WP1/5/9/11/12/22/91


Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500

Furface:

Pickled,sand blasting, rolling blast,brighten,polished,galvinizing,vanished

End:

Bevel end/PE/buttweld

Material:

Carbon Steel ASME / ASTM SA / A234 WPB, DIN 1.0405

Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404


Carbon Steel Pipe Fitting - Elbow 45

Nominal

Outside

Inside

Wall

Center

Pipe

Weight

Pipe Size

Diameter

Diameter

Thickness

To End

Schedule

Pounds

1/2“

0.84

0.622

0.109

0.62

40

0.09

3/4”

1.05

0.824

0.113

0.75

40

0.1

1

1.32

1.05

0.133

0.88

40

0.22

1 1/4

1.66

1.38

0.14

1

40

0.33

1 1/2

1.9

1.61

0.145

1.12

40

0.43

2

2.38

2.07

0.154

1.38

40

0.85

2 1/2

2.88

2.47

0.203

1.75

40

1.7

3

3.5

3.07

0.216

2

40

2.5

3 1/2

4

3.55

0.226

2.25

40

3.4

4

4.5

4.03

0.237

2.5

40

4.5

5

5.56

5.05

0.258

3.12

40

7.5

6

6.62

6.06

0.28

3.75

40

11.7

8

8.62

7.98

0.322

5

40

23.3

10

10.75

10.02

0.365

6.25

40

40.9

12

12.75

12

0.375

7.5

*

61.4

14

14

13.25

0.375

8.75

30

78.1

16

16

15.25

0.375

10

30

101

18

18

17.25

0.375

11.25

*

128

20

20

19.25

0.375

12.5

20

159

24

24

23.25

0.375

15

20

231

30

30

29.25

0.375

18.5

*

358

36

36

35.25

0.375

22.25

*

518

42

42

41.25

0.375

26

*

707

48

48

47.25

0.375

29.88

*

1,000


Carbon Steel Pipe Fitting - Short Radius Elbow 90


Outside

Inside

Wall

Center

Pipe

Weight

Pipe Size

Diameter

Diameter

Thickness

To End

Schedule

Pounds

1

1.32

1.05

0.133

1

40

0.25

1 1/4

1.66

1.38

0.14

1.25

40

0.39

1 1/2

1.9

1.61

0.145

1.5

40

0.53

2

2.38

2.07

0.154

2

40

0.97

2 1/2

2.88

2.47

0.203

2.5

40

2

3

3.5

3.07

0.216

3

40

3

3 1/2

4

3.55

0.226

3.5

40

4.3

4

4.5

4.03

0.237

4

40

6.1

5

5.56

5.05

0.258

5

40

9.7

6

6.63

6.07

0.28

6

40

16.7

8

8.63

7.98

0.322

8

40

32.4

10

10.75

10.02

0.365

10

40

56.3

12

12.75

12

0.375

12

*

79.4

14

14

13.25

0.375

14

30

104

16

16

15.25

0.375

16

30

129

18

18

17.25

0.375

18

*

163

20

20

19.25

0.375

20

20

210

24

24

23.25

0.375

24

20

297

30

30

29.25

0.375

30

*

480

36

36

35.25

0.375

36

*

692

42

42

41.25

0.375

42

*

967

48

48

47.25

0.375

48

*

1,340


Carbon Steel Pipe Fitting - Long Radius Elbow 90

Nominal

Outside

Inside

Wall

Center

Pipe

Weight

Pipe Size

Diameter

Diameter

Thickness

To End

Schedule

Pounds

1/2“

0.84

0.622

0.109

1.5

40

0.16

3/4”

1.05

0.824

0.113

1.5

40

0.17

1

1.32

1.049

0.133

1.5

40

0.4

1 1/4

1.66

1.38

0.14

1.88

40

0.55

1 1/2

1.9

1.61

0.145

2.25

40

0.8

2

2.38

2.07

0.154

3

40

1.6

2 1/2

2.88

2.47

0.203

3.75

40

3.2

3

3.5

3.07

0.216

4.5

40

4.8

3 1/2

4

3.55

0.226

5.25

40

6.6

4

4.5

4.03

0.237

6

40

8.9

5

5.56

5.05

0.258

7.5

40

15.1

6

6.62

6.07

0.28

9

40

24

8

8.62

7.98

0.322

12

40

47.8

10

10.75

10.02

0.365

15

40

83.4

12

12.75

12

0.375

18

*

123

14

14

13.25

0.375

21

30

155

16

16

15.25

0.375

24

30

206

18

18

17.25

0.375

27

*

262

20

20

19.25

0.375

30

20

324

24

24

23.25

0.375

36

20

466

30

30

29.25

0.375

45

*

720

36

36

35.25

0.375

54

*

1,039

42

42

41.25

0.375

63

*

1,420

48

48

47.25

0.375

72



Packing

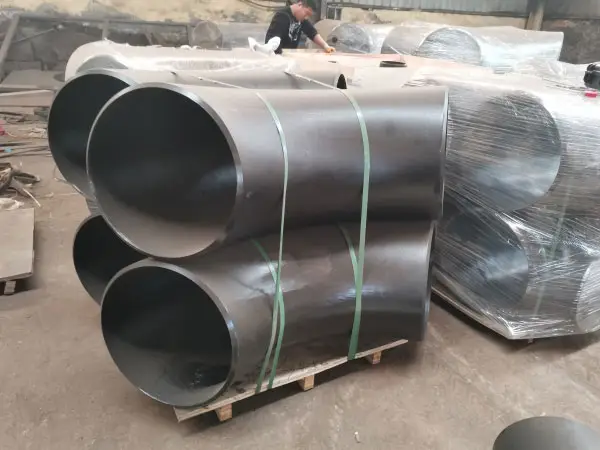

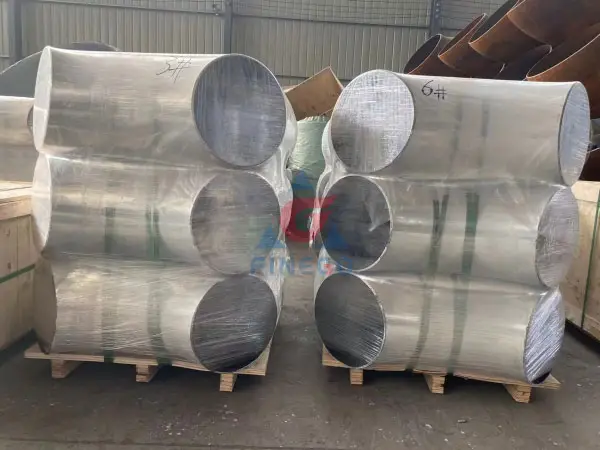

  • nylon slings bundled + wrapped by film + wooden pallet

    nylon slings bundled + wrapped by film + wooden pallet

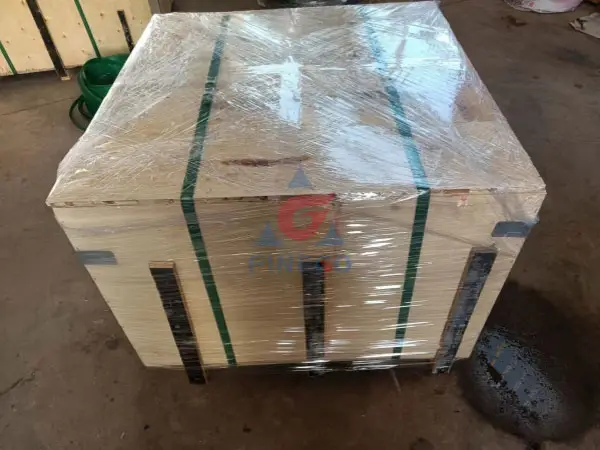

  • Wooden case packing

    Wooden case packing
