Coated Steel Pipe

Galvanized Steel Pipe

Wall Thickness: 0.6mm-12mm or customized

Length: 5.5m-12m or customized
Outer Diameter: 0.3mm-300mm or customized
Tolerance: Wall thickness: ±0.05MM; Length: ±6mm; Outer diameter: ±0.3MM
Shape: Round, square, rectangle, oval, deformed
Technique: Cold rolled, hot rolled, ERW
Surface Treatment: Black annealing, bright annealing, none annealing
Application: Widely used in furniture,interior decoration, fluid pipeline, petroleum and natural gas industry, drilling, pipeline, structure

Specification

Galvanized steel pipe is a welded steel pipe with a hot-dip or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipelines in the petroleum industry, especially offshore oil fields, and oil heaters and condensation pipes for chemical coking equipment.


APPLICATIONS

Uses of galvanised pipe include general fabrication, manufacturing, frames, construction, water and sewer lines, chemical processing, steel scaffolding, sprinkler and irrigation systems and automotive industry.


TYPES

Galvanised pipe can be grouped into 3 categories: Allied flo-coat pipe, pre-galvanised pipe and Schedule 40 hot dipped galvanised pipe. Details of these types are as following:

Type

Description

Allied Flo-Coat Pipe

Cold formed, welded with high frequency and hot-dipped galvanization. Produced in accordance with ASTM A1008/A1008M and A1011/A1011M standards with a minimum productivity strength of 30,000 psi.

Pre-Galvanised Pipe

Cold formed and welded with radio frequency pre-galvanized steel strip. Pre-galvanized steel needs to conform to ASTM A446 standard.

Schedule 40 Hot Dip Galvanised Pipe

Not covered by any specification. Outside diameter and the wall thickness are defined by other specifications as for non-galvanised pipes. Typically hot formed and butt welded, or cold formed and high frequency welded.


COMMON SIZES AND SPECIFICATIONS

Nominal Inner Diameter

Outer Diameter

Wall Thickness

Length

DN15

21.3mm

2.8mm

Up to 6000mm

DN20

26.9mm

2.8mm

Up to 6000mm

DN25

33.7mm

3.2mm

Up to 6000mm

DN32

42.4mm

3.5mm

Up to 6000mm

DN40

48.3mm

3.5mm

Up to 6000mm

DN50

60.3mm

3.8mm

Up to 6000mm

DN65

76.1mm

4mm

Up to 6000mm

DN80

88.9mm

4mm

Up to 6000mm

DN100

114.3mm

4mm

Up to 6000mm

DN125

140mm

4.5mm

Up to 6000mm

DN150

168.3mm

4.5mm

Up to 6000mm

DN200

219.1mm

6mm

Up to 6000mm

DN200

219.1mm

6.5mm

Up to 6000mm

Other galvanised pipe sizes are available upon request. You can request to cut your galvanised pipe down to size.


MECHANICAL PROPERTIES

Properties

Flo-Coat Process

Pre-Galvanised

Hot Dip (Schedule 40)

Bright Finish

Excellent

Fair

Poor

Uniform Finish

Excellent

Good

Poor

Formability

Excellent

Good

Poor

Paint Adhesiveness

Excellent

Fair

Poor

Weldability

Excellent

Good

Fair

Interior Corrosion Resistance

Excellent

Poor

Good

Exterior Corrosion Resistance

Excellent

Fair

Good

Yield Strength

Excellent

Good

Fair

Process

1. Metal Preparation
2. Dipping Phase into Molten Zinc
3. Cooling, Finishing, and Drying
4. Quality Control

Packing

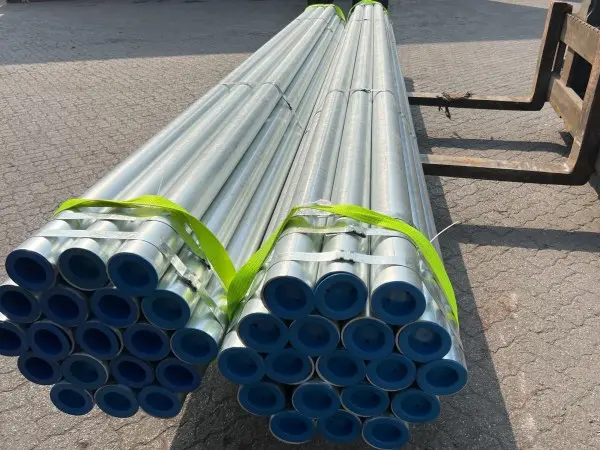

  • Steel belts bundled + pipe cap + two nylon slings

    Steel belts bundled + pipe cap + two nylon slings

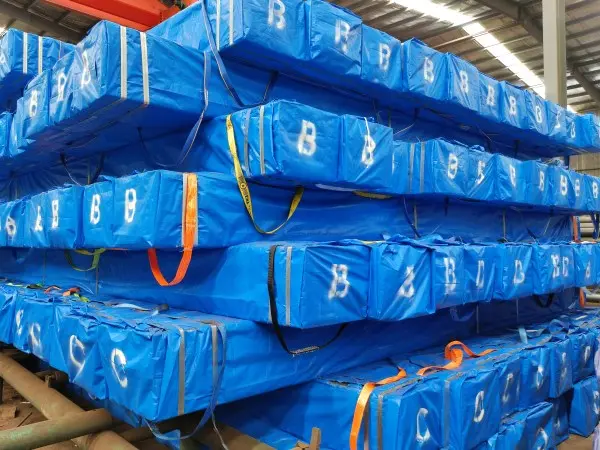

  • Steel belts bundled + woven bags + nylon slings

    Steel belts bundled + woven bags + nylon slings
