Welded Steel Pipe

API 5L Welded Pipe

Grade: API 5L grade b, x42, x46, x52, x56, x60, x65, x70, x80

Manufacturing Types: erw, lsaw, ssaw

Range of Thickness: sch10 to sch160

Ends Type: beveled ends, plain ends

Range of Length: 20ft, 40ft or customized

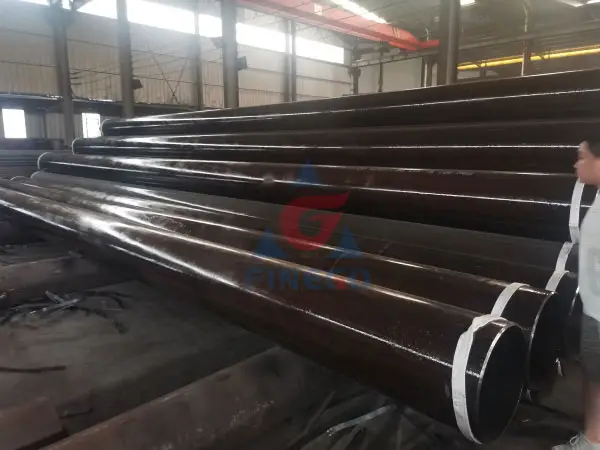

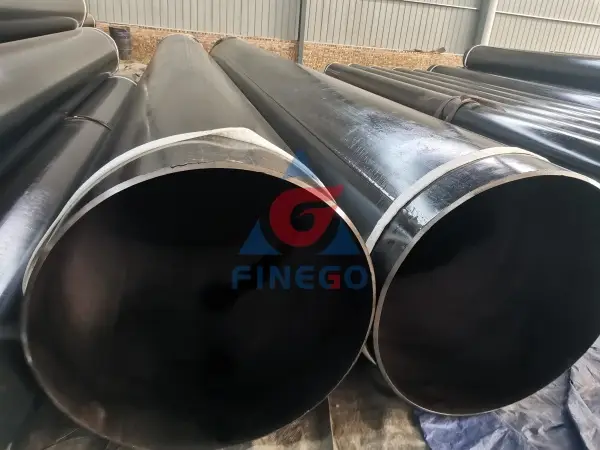

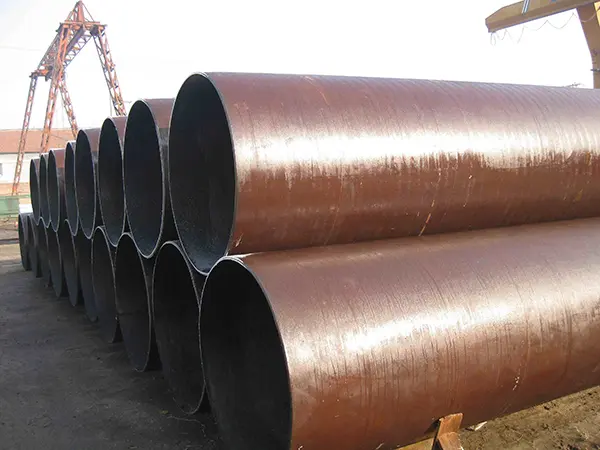

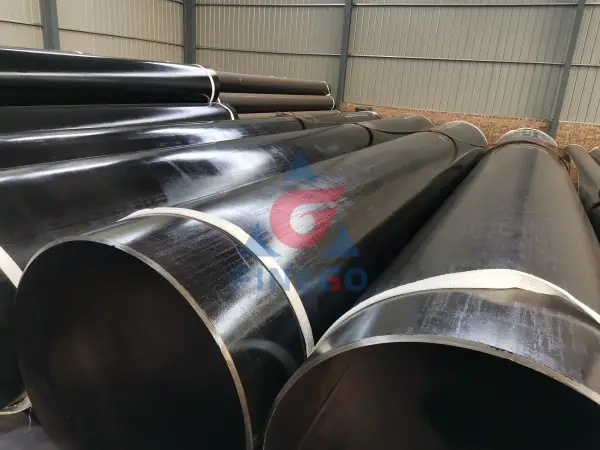

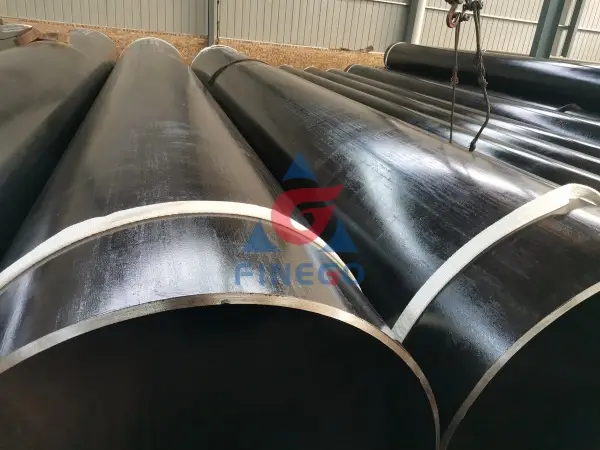

Surface Appearances: natural, varnished, black painting, 3pe, fbe, etc

Range of Thickness: SCH 10 to SCH 160
Protection Caps in plastic or iron available

Standard

Specification

API 5L welded steel pipe types on oil pipelines include spiral submerged arc welded pipe (SSAW), longitudinal submerged arc welded pipe (LSAW), and electric resistance welded pipe (ERW).


There are many grades of raw materials for API 5L steel pipes like: GR.B, X42, X46, X52, X56, X60, X70, X80, etc. ANSI / API 5L specifies the manufacture of two product levels (PSL1 and PSL2).


Pipeline pipes should be subjected to water pressure tests one by one, and the standard does not provide for non-destructive substitution of water pressure. This is also a big difference between API standards and Chinese standards. API 5l psl1 does not require non-destructive inspection, API 5l psl2 should be non-destructive inspection one by one.


Applied for petroleum and natural gas industries, oil industries requirements for transportation and are expected working in extreme situations, low and high temperatures, corrosion resistance for corrosive environments, and for sour services in H2S conditions.


API 5L Welded Line Pipe Range

API 5L Welded Pipe Specification

API 5L / ISO 3183 Hot Rolled.

API 5L Welded Pipe Grades

API 5L Grade B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / ISO 3183 L245 PSL1, PSL 2, ISO 3183 L290 PSL1, PSL 2, ISO 3183 L320 PSL1, PSL2, ISO 3183 L360 PSL1, PSL 2, ISO 3183 L390 PSL1, PSL 2, ISO 3183 L415 PSL1, PSL 2, ISO 3183 L450 PSL1, PSL 2, ISO 3183 L485 PSL1, PSL 2

API 5L Welded Pipe Type

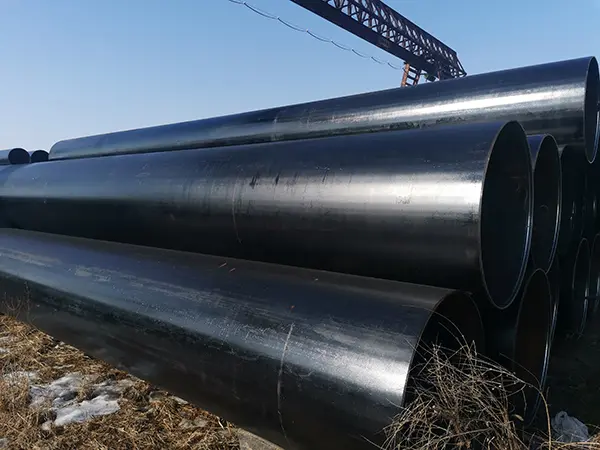

LSAW Pipes (Longitudinal Submerged Arc Welded Pipes )
HSAW Pipes (Helical Submerged Arc Welded Pipes )
DSAW Pipes (Double Submerged Arc Welded Pipes )
HSAW Pipes (Helical Submerged Arc Welded Pipes )

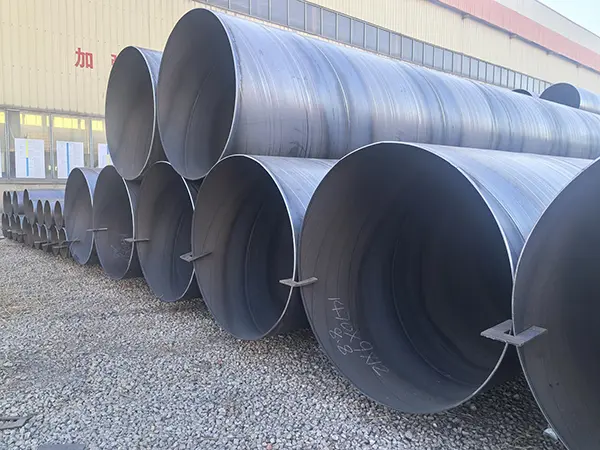

SSAW Pipes (Spiral Submerged Arc Welded Pipes )

API 5L Welded Pipe Outer Diameter Size

12" NB to 150" NB (Nominal Bore Size)

API 5L Welded Pipe Wall Thickness

Schedule 20 to Schedule XXS (Heavier On Request) Up to 250 mm Thickness

API 5L Welded Pipe Length

5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.

API 5L Welded Pipe Ends

Plain Ends / Beveled Ends / Coupling

API 5L Welded Pipe Delivery Conditions

As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T

API 5L Welded Pipe Coating

Epoxy Coating / Colour Paint Coating / 3LPE Coating.

API 5L Welded Pipe Other Testing

NACE MR0175, NACE TM0177, SOUR SERVICE, NACE TM0284, PWHT, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, IPS-M-PI190, IPS-M-PI-221 APPENDIX G Etc.

API 5L Welded Pipe Dimension

All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.

API 5L Welded Pipe Value Added Services

Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment

API 5L Welded Pipe Packaging

Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector

API 5L Welded Pipe Shipment & Transportation

By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet

API 5L Welded Pipe Material Test Certificate

Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC


API 5l Weldedline Pipe Psl1 Chemical Properties


Mass Fraction, based upon heat and product analyses

Steel grade

C

Mn

P

S

V

NB

Ti

(Steel name)

max

max.

min.

max.

max.

max.

max.

max.

L175 or A25

0.21

0.60


0.030

0.030

-



L175P or A25P

0.21

0.60

0.045

0.800

0.030




L210 or A

0.22

0.90

-

0.030

0.030

-

-

-

L245 or B

0.26

1.20


0.030

0.030

c,D

c,D

D

L290 or X42

0.26

1.30


0.030

0.030

D

D

D

L320 or X46

0.26

1.40

-

0.030

0.030

D

D

D

L360 or X52

0.26

1.40


0.030

0.030

D

D

D

L390 or X56

0.26

1.40


0.030

0.030

D

D

D

L415 or X60

0.26

1.40

-

0.030

0.030

f

f

f

L450 or X65

0.26

1.45


0.030

0.030

f

f

f

L485 or X70

0.26

1.65


0.030

0.030

f

f

f


API 5l Welded Line Pipes PSL2 Chemical Composition

Mass Fraction, based upon heat and product analyses

Carbon Equivalent % max

Steel grade

C

Si

Mn

P

S

V

Nb

Ti

Other

Ce

CE

L245 or Bm

0.22

0.45

1.20

0.025

0.015

0.05

0.05

0.04

e,l

0.43

0.25

L290M or X42M

0.22

0.45

1.30

0.025

0.015

0.05

0.05

0.04

e,l

0.43

0.25

L320M or X46M

0.22

0.45

1.30

0.025

0.015

0.05

0.05

0.04

e,l

0.43

0.25

L360 or X52M

0.22

0.45

1.40

0.025

0.015

D

D

D

e,l

0.43

0.25

L390 or X56M

0.22

0.45

1.40

0.025

0.015

D

D

D

,l

0.43

0.25

L415 or X60M

0.12

0.45

1.60

0.025

0.015

g

g

g

,l

0.43

0.25

L450 or X65M

0.12

0.45

1.60

0.025

0.015

g

g

g

,l

0.43

0.25

L485 or X70M

0.12

0.45

1.60

0.025

0.015

g

g

g

,l

0.43

0.25


API 5L Welded Pipes Comparative Specifications

Grade Range

A25 Through X70

Gr B Through X80

Table 1

Size Range

0.405 Through 80

4-2/1 Through 80

Table 1

Type Of Pipe Ends

Plain-End, Threaded-end, Bevelled-End, Special Coupling Pipe

Plain-EnD

Table 1

Seam Welding

All Methods Continous Welding Limited to Grade A25

All Methods Except Continous And Laser Welding

Table 1

Electric Welds: Welder Frequency

No Minimum

100 Khz Minimum

5.1.3.3.2

Heat Treatments of Electric Welds

Required For Grades > X42

Required For All Grades (Gr B Through X80)

5.1.3.3.1; J.3.3.2:6.2.7

Chemistry: Max C For Seamless Pipe

0.28% For Grades > Gr B

0.24%

tables 2a, 2b

Chemistry: Max C For Welded Pipe

0.26% For Grades > Gr B

0.22%

tables 2a, 2b

Chemistry: Max P

0.03%

0.03%

Tables 2a, 2b

Chemistry: Max S

Only When Purchases Specifies Sr18

0.02%

Tables 2a, 2b

Carbon Equivalent

None

Maximum Required for Each Grade

4.2:4.3:6.1.3: Sr15.1

Yield Strength, Maximum

None

Maximum for Each Grade

tables 3a, 3b

UTS, Maximum

None RequireD

Maximum For Each Grade

Tables 3a, 3b

Fracture Toughness

Only When Purchaser Specifies Sr4

Required For All Grades

6.2.6; 9.3.5: 9.8.4; 9.10.7;

Non-destructive Inspection of Seamless Pipes

PermitteD

sr4 Mandatory

table 14 9.7.2.6

Repair By Welding of Pipe Body, Plate And Skelp

Permitted By Agreement

ProhibiteD

5.3.2;9.7.6: B.1;b.2

Certification

Certificates When Specified Per Sr15

ProhibiteD

4.3;9.7.4.4;9.7.6;b.1.2;b.4

Traceability

Traceable Only Until All Tests are Passed Unless Sr15 Is SpecifieD

Certificates (Sr15.1) Mandatory
Traceable After Completion of Tests (Sr15.2) Mandatory

12.1
5.6


CHEMICAL REQUIREMENTS for API 5L Steel Pipe

API 5L Specifications Covers Seamless and Welded pipe suitable for use in conveying gas, water, oil, and other liquefied media. The attached requirements cover our offering of API 5L 45th Ed, PSL 1Seamless and Welded; API 5L 45th Ed PSL 2 Seamless & Welded; and API 5L 45th Ed PSL2 Welded only.
TENSILE PROPERTIES for Seamless and Welded API 5L steel Pipe
tensile properties data for Seamless and Welded API 5L steel pipe API 5L 45th Ed PSL 1, PSL 2.
TESTING REQUIREMENTS for Seamless and Welded API 5L steel Pipe
Our API 5L Welded Pipes hydrostatic and mechanical testing information for all sizes and grades covered by the specification.


Permissible Variations for Seamless and Welded API 5L Steel Pipe


Grade A, B, A25

X42 through X80

NPS 2-1/2 and smaller --Seamless and Welded, %

+20 -- 12.5

+15 -- 12.5

NPS 3 --Seamless and Welded, %

+18 -- 12.5

+15 -- 12.5

NPS 4 through 18 --Seamless and Welded, %

+15 -- 12.5

+15 -- 12.5

NPS 20 and larger -- Welded, %

+17.5 -- 10.0

+19.5 -- 8.0

NPS 20 and larger -- Seamless, %

+15.0 -- 12.5

+17.5 -- 10.0

Process

There are 3 welding types: ERW (Electric Resistance Welding), LSAW (Longitudinally Submerged Arc Welding), and SSAW (Spirally Submerged Arc Welding) welding types.

ERW pipe is a type of Resistance pipe stands apart from welded pipe and DC welded pipe in two different manners as listed below. Based on the welding frequency, the IF welding for low frequency and the ultra-IF welding for high frequency. In case of thin-walled pipe, there is a high frequency weld used typically in case of contact welding and induction welding. When the usage is for a small-diameter pipe, they make use of DC welding. There is a high frequency welding process used to manufacture pipes that are comprehensive and is of ERW type. For oil and gas storage, the best recommended type is ERW longitudinal, owing to its quality, ease of transport and cost.

Both LSAW pipe and SSAW pipe are SAW pipe (Submerged Arc Welding Steel Pipe), is manufactured by making use of a submerged arc soldering process for preparing the steel and it results in high density pipe. Owing to the flux layer, there is no instant heat loss and it gets concentrated near the weld. It results in high quality, highly efficient arc and smoke, which finds intensive usage in pressure vessels, pipe manufacturing, beams, fluids, steel works etc. SAW pipe find its main usage in LSAW pipe, which is Longitudinally Submerged Arc Welding pipe.

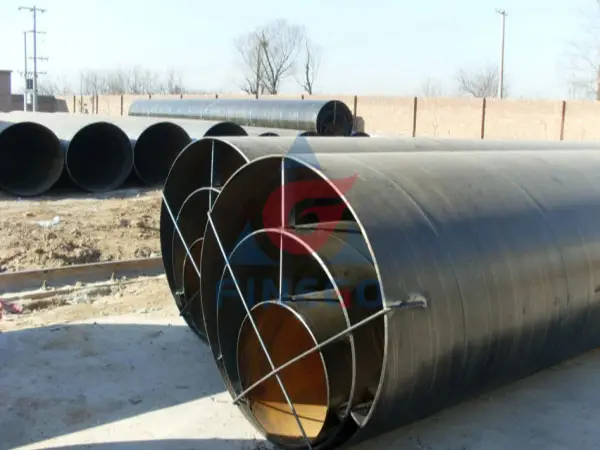

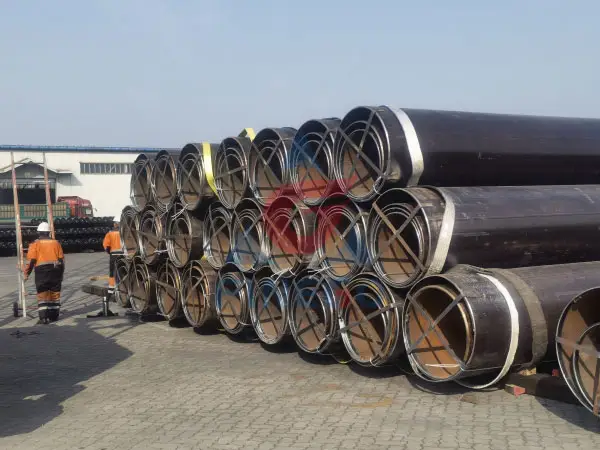

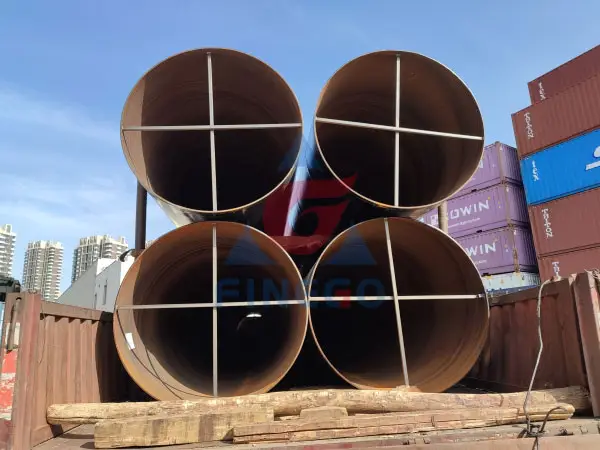

Packing

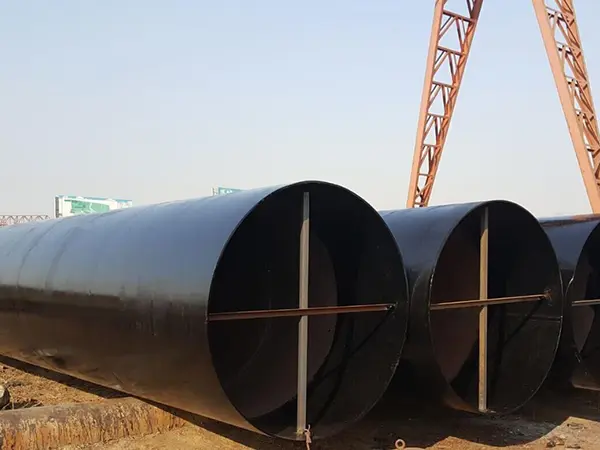

  • Loose + groove protector + two nylon slings +  cross steel frame

    Loose + groove protector + two nylon slings + cross steel frame

  • Loose + groove protector + two nylon slings + cross steel frame

    Loose + groove protector + two nylon slings + cross steel frame

  • Loose + two nylon slings + cross steel frame

    Loose + two nylon slings + cross steel frame

  • OD 219mm and above (Loose) Loose + pipe cap + two nylon slings

    OD 219mm and above (Loose) Loose + pipe cap + two nylon slings
