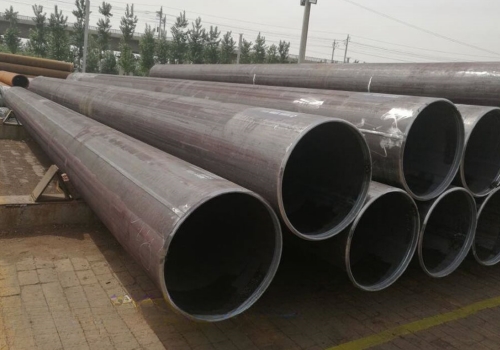

What Is a Double Seam Welded Pipe?

Pipe failures cost time and money. You need a strong piping system to avoid leaks. A double seam welded pipe solves this problem with its high strength. A double seam welded pipe is a steel pipe joined by welding both the inside and outside of the seam. This two-sided method creates a strong and durable product. Builders use it for moving water, oil, and gas safely over long distances.

When you buy steel pipes, you do not want to risk a broken seam. Let me show you exactly how this pipe handles high pressure and saves you money on your next project.

How Do We Form the Steel Plate for a Double Seam Welded Pipe?

Weak raw materials ruin your entire project. Finding the right steel plate is hard. We fix this by picking high-strength steel and shaping it carefully. We form the steel plate by cutting it to the exact size you need. Then, we use large rolling machines to bend the flat plate into a cylinder shape. Finally, we cut a V-shape on the edges so the weld holds tight.

I recall a project last year where a client received bad pipes from another seller. The pipes broke because the seller used poor steel. At Finego Steel, we start the right way. We use low-alloy steel that fights rust and handles heavy weight.

Preparation Steps

1. Cut the steel coils to the exact length you need.

2. Check the edges for any small marks (these marks cause bad welds).

3. Machine the edges to make them straight and smooth.

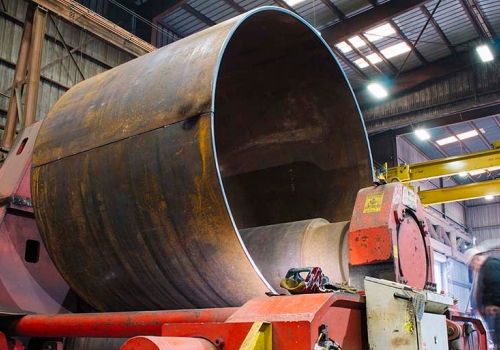

Bending The Plate

1. Press the flat plate into a U shape using large machines.

2. Press the plate again into a full O shape.

3. Check the roundness to make sure it matches your exact size needs.

Steel Plate Parameters

You need strict checks during these steps. If the O shape is not perfectly round, the two edges will not meet. We make sure the edges match exactly so the next step works perfectly. We do not skip any quality checks during plate formation.

What Welding Process Creates a Double Seam Welded Pipe?

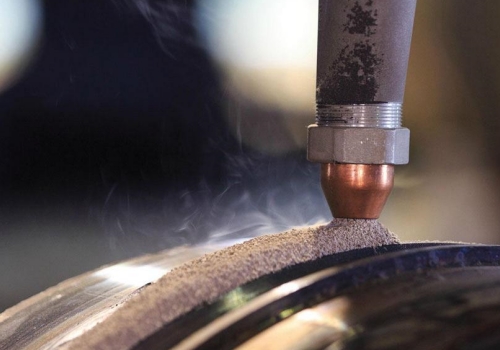

A weak weld causes pipe leaks and project delays. You need a fast and strong joining method. Submerged arc welding creates a perfect bond every time. Submerged arc welding is the main process we use. A machine welds the pipe under a layer of flux powder. This powder covers the heat, stops rust, and makes the weld smooth. We weld the inside first, then the outside.

When I started working with pipes 18 years ago, I saw how air could ruin a hot weld. The oxygen makes the metal weak. Submerged arc welding solves this by hiding the hot metal under a special powder called flux.

Why We Use Submerged Arc Welding

1. Blocks the air: The flux melts into a thick cover over the metal pool. This stops the air from touching the hot weld.

2. Keeps the heat steady: The powder makes the machine run smoothly without jumping.

3. Adds extra strength: The melted powder adds good elements to the steel joint.

4. Saves you time: We use high power to weld faster, which means you get your pipes sooner.

Welding Steps

1. Clean the V-notch edges to remove any dirt.

2. Run the first weld on the inside of the cylinder.

3. Run the second weld on the outside right after. This two-step process makes sure the melted metal goes all the way through the steel wall. The joint becomes the strongest part of the entire pipe. You get a product that lasts for decades in tough weather. We test this bond to guarantee it holds under maximum stress.

What Are the Common Welding Types for a Double Seam Welded Pipe?

Choosing the wrong pipe style wastes your money. Straight and spiral pipes fit different jobs. We help you pick the right type for your site. You can choose longitudinal seam welding for straight lines or circumferential seam welding for spiral lines. Straight seams work best for thick walls. Spiral seams cost less and use narrower steel strips. Both types give you high strength. Many buyers ask me which type to choose to keep their costs low. Let me break it down for you. You have two main choices.

Longitudinal Seam Welding

1. The machine welds a straight line from one end to the other.

2. We use wide steel plates for this method.

3. You get a pipe that is very thick and handles massive pressure.

4. You can easily test a straight line for any faults.

Circumferential Seam Welding

1. The machine rolls a long, narrow steel strip at an angle.

2. This forms a spiral line around the pipe body.

3. You save money because narrow steel strips cost less.

4. The spiral shape adds extra stiffness to the pipe structure.

Cost And Usage Data

If your project requires long, continuous pipes for water transport, spiral pipes are a great choice. If you move heavy oil under high pressure, you want the straight seam. We help you check your project plans and pick the one that saves you the most money.

Frequently Asked Questions About Double Seam Welded Pipes?

Unanswered questions stall your purchasing decisions. You need clear facts to buy with confidence. Here are the answers to the most common questions buyers ask me. Buyers often ask about sizes, testing, and delivery times for a double seam welded pipe. We test every pipe using water pressure and sound waves. You can order sizes from small half-inch pipes up to giant 72-inch water lines. Over the years, I have spoken with hundreds of buyers just like you. I collected the most common questions to save you time.

Common Questions From Buyers

· What sizes of double seam welded pipes do you make?

We make pipes from 1/2 inch all the way up to 72 inches wide. You can get exactly what you need for both small and large projects from us.

· How do you test the weld for leaks?

We test every single pipe before it leaves our yard. We use sound waves (ultrasonic testing) to look inside the metal. We also fill the pipe with water and apply high pressure to make sure it never leaks.

· Can you apply a coating to stop rust?

Yes, we apply special paint or thick plastic coatings to the outside. This helps the pipe last a long time if you bury it in wet dirt.

· Why should I choose Finego Steel?

We do everything in one place. We buy the steel, roll it, weld it, and test it. This saves you money and cuts down your wait time. We stand by our quality.

Conclusion

A double seam welded pipe offers the strength you need for safe pipelines. Contact Finego Steel today to get high-quality pipes and save money on your next project.
