Pipe Bend vs Elbow: Key Differences and How to Choose the Right One

When designing piping systems, understanding the differences between a pipe bend vs elbow is crucial for ensuring optimal performance, efficiency, and cost-effectiveness. While both components are used to change the direction of flow in a pipeline, they have distinct characteristics that make them suitable for different applications.

What Is a Pipe Bend?

A pipe bend is a generic term for any curved section of pipe that redirects flow. Unlike elbows, bends are often custom-made to meet specific angle requirements, typically with a larger radius to minimize pressure drop and turbulence.

Key Features of Pipe Bends:

· Longer radius (usually 3D, 5D, or more) for smoother flow

· Custom angles (not limited to standard 45° or 90°)

· Reduced pressure loss due to gradual curvature

· Fabricated on-site or ordered as per project needs

Pipe bends are commonly used in high-pressure systems, such as oil and gas pipelines, where flow efficiency is critical.

What Is a Pipe Elbow?

A pipe elbow is a pre-fabricated fitting with standardized angles (typically 45° or 90°) and a shorter radius compared to bends. Elbows are mass-produced and readily available in various materials and sizes.

Key Features of Pipe Elbows:

· Standard angles (45°, 90°, or sometimes 180°)

· Tighter radius (Short Radius (SR) or Long Radius (LR))

· Easier installation due to pre-made specifications

· Widely used in plumbing, HVAC, and low-pressure systems

Elbows are preferred in tight spaces where a sharp direction change is needed without requiring a custom solution.

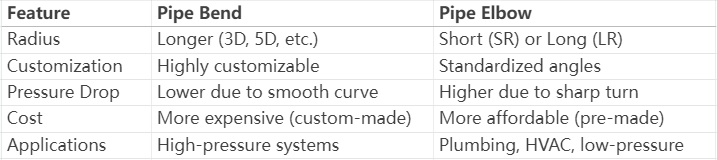

Pipe Bend vs Elbow: Major Differences

When to Use Pipe Bend vs Elbow?

· Choose a pipe bend when you need a smooth flow transition, especially in high-pressure or high-temperature applications like power plants and refineries.

· Choose an elbow for standard piping systems where space is limited and quick installation is required, such as residential plumbing or industrial process lines.

Conclusion

The choice between a pipe bend vs elbow depends on factors like flow requirements, space constraints, and budget. While bends offer superior flow efficiency, elbows provide convenience and cost savings. Understanding these differences ensures the right component is selected for your piping system.

By evaluating your project’s needs, you can decide whether a pipe bend vs elbow is the best solution for optimal performance and longevity.
