Flange&Pipe Fittings
Valve
Finego's Product categories include large diameter gate (4" or larger) valves, check valves, globe valves, ball valves, plug valves, butterfly valves, and other large diameter valves, and are widely used in petroleum, chemical industry, electric power, mining, metallurgy, steel, coal preparation , alumina, papermaking, pharmaceuticals, sewage treatment and other industries, the products are exported to Southeast Asia, the Middle East, Europe, South America, Africa and other parts of the world.
Standard
Specification
Gate Valve
Size : 4" or larger
Pressure Rating: CL150~CL2500.
Connection end: FF, RF, RTJ, BW.
Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
Design Standard: API 600, ASME B16.34
Test: API 598, ISO 5208
Flange End: ASME B16.5, ASME B16.47
Welding End: ASME B16.25
Face to Face: ASME B16.10
Sour Service: NACE MR 0175
Operation: Handwheel, Gear, pneumatic, Electric, etc
Application conditions: Gate valves are suitable for most industrial pipeline systems, especially in the case of conveying liquids and steam. The gate valve can be opened and closed quickly, can quickly cut off the flow of fluid and steam, and has good sealing and corrosion resistance. Gate valve is not suitable for: regulating/throttling conditions and easy coking conditions.
Check Valve
Size: 4" or larger
Pressure Rating: CL150-CL2500.
Connection End: FF, RF, RTJ, BW.
Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
Design Standard: BS1868,AP| 594, API 6D
Test: AP| 598, ISO 5208
Flange End: ASME B16.5, ASME B16.47
Welding End: ASME B16.25
Face to Face: ASME B16.10
Sour Service: NACE MR 0175
Application Conditions: The check valve can be used in the pipeline of liquid, gas, steam and various corrosive media, and is suitable for the pipeline system in various industries to prevent the reverse flow of the medium.

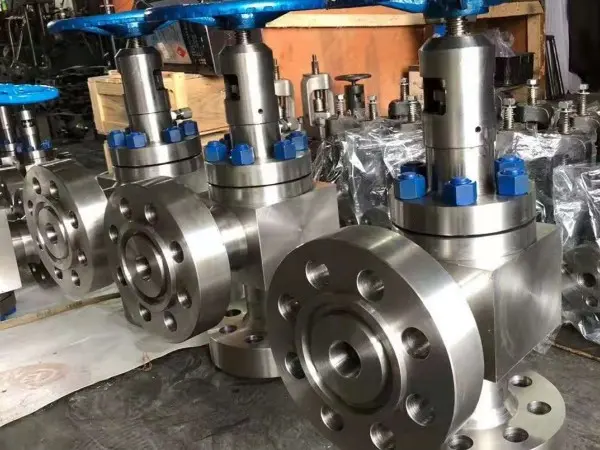

Globe Valve
Size: 4" or larger
Pressure Rating: CL150-CL2500.
Connection end: FF, RF, RTJ, BW.
Body Material: Body Materials Carbon Steel, Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
Design Standard: BS1873, API 623, ASME B16.34
Test: API 598, ISO 5208
Flange End: ASME B16.5, ASME B16.47
Welding End: ASME B16.25
Face to Face: ASME B16.10,
Sour Service: NACE MR 0175
Operation: Handwheel, Gear, pneumatic, Electric, etc
Application conditions: The globe valve is suitable for a variety of media pipelines, including tap water, chemical fluids, petrochemical, public utilities and other pipeline systems, the globe valve can be cut off and flow/pressure regulation, is usually selected in the convection resistance requirements of the pipe.

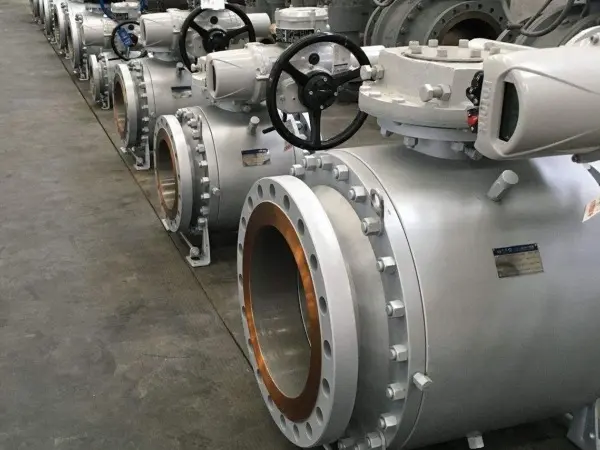

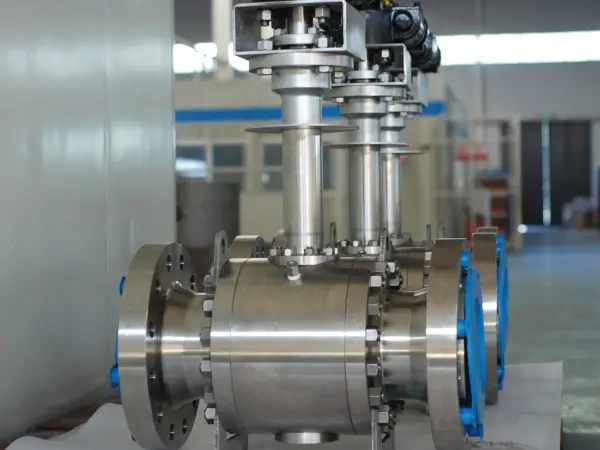

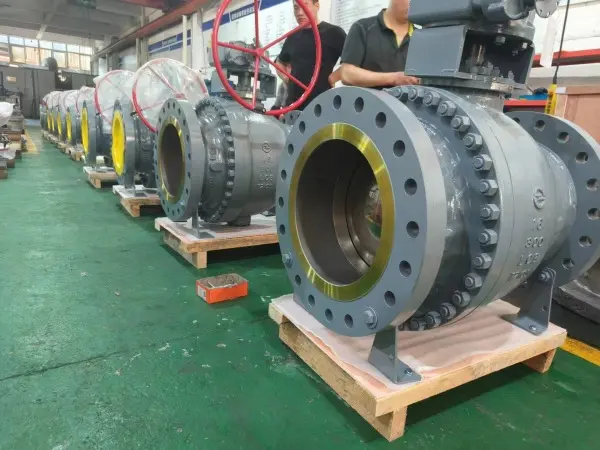

Ball Valve
Soft seat ball valve & Metal seat ball valve
Floating, DBB .DIB Design for Option
Size: 4" or larger
Pressure Rating: CL150~CL2500, 1000psi ~6000psi
Connection end: SW, Thread, FF, RF, RTJ, BW, Wafer
Body Material: Body Materials Carbon Steel,Stainless Steel, Alloy steel, Duplex SS etc. Optional materials on request.
Design Standard: ISO 17292, AP| 608, API 6D
Test: API 598, ISO 5208, API 6D
Flange End: ASME B16.5, ASME B16.47
Welding End: ASME B16.25
Face to Face: ASME B16.10, AP| 6D
Sour Service: NACE MR 0175
Fire safety: API 607, API 6FA
Anti-static Design, Anti Blow-Out
Operation: Lever, Gear, pneumatic, Electric, Hydraulic, etc.
Application conditions: The ball valve has the characteristics of low flow resistance, which can be applied to almost all industrial pipeline systems, especially in the case of conveying liquids and gases. Ball valves can be opened and closed quickly, can quickly cut off fluid and gas flow, with good sealing and corrosion resistance. Soft seat or hard seat ball valves can be selected according to temperature and medium conditions.
Butterfly Valve
Size: 4" or larger
Pressure Rating: CL150-CL600
Connection end: FF, RF, BW, Wafer, Lug
Body Material: Body Materials Carbon Steel,Stainless Steel, Alloy steel,Duplex SS etc .Optional materials on request.
Design Standard: API 609/ASME B16.34
Test: API 598, ISO 5208
Flange End: ASME B16.5, ASME B16.47
Welding End: ASME B16.25
Face to Face: API 609
Sour Service: NACE MR 0175
Operation: Lever, Gear, pneumatic, Electric, Hydraulic, etc.
Application conditions :1, requiring throttling, regulating and controlling flow. 2, requiring short valve structure length occasions. 3, requiring short valve structure length occasions. 4, requiring fast opening and closing speed occasions. 5, small pressure difference occasions
Packing
