Oilfield Tubular

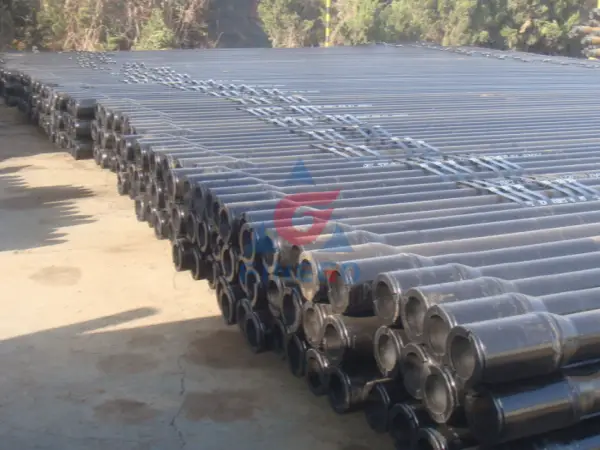

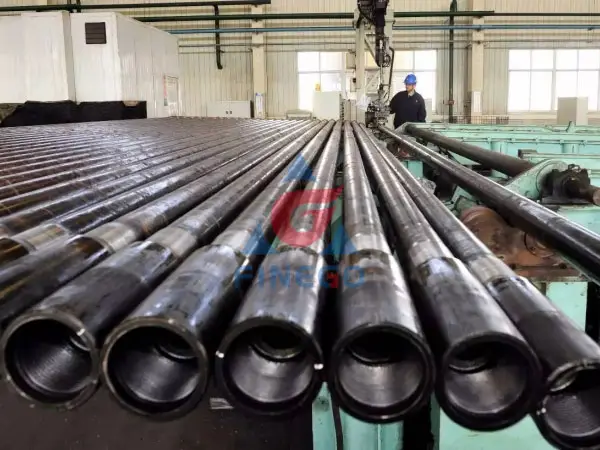

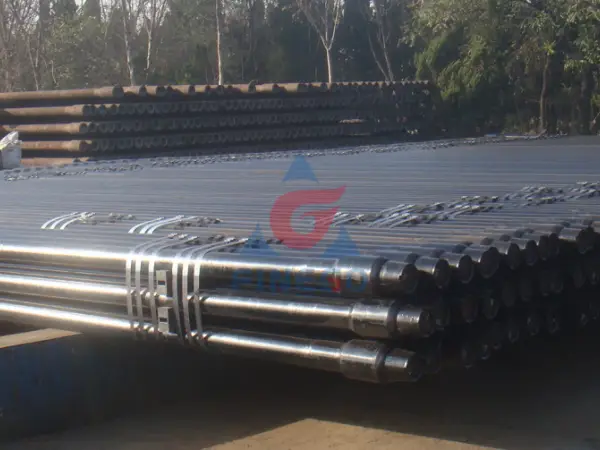

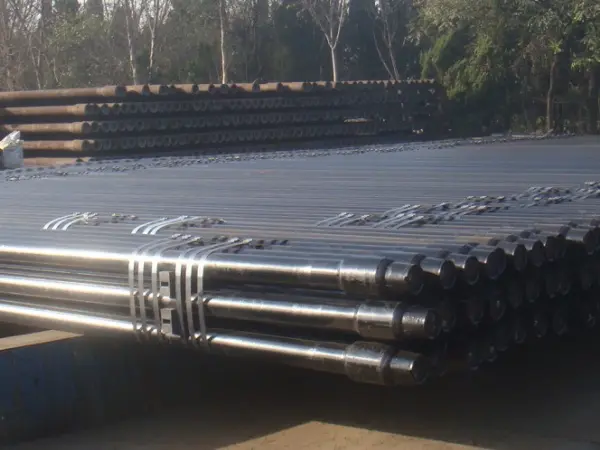

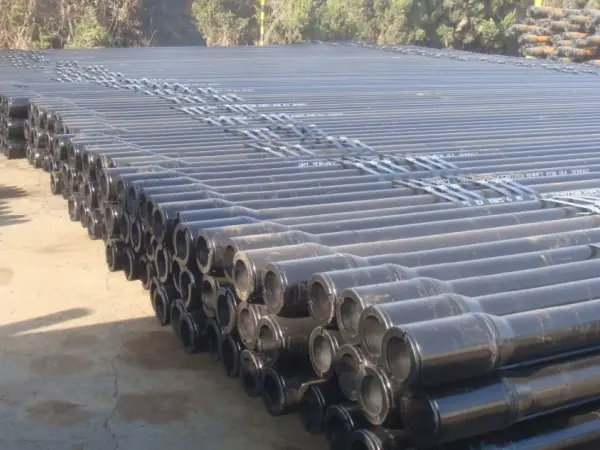

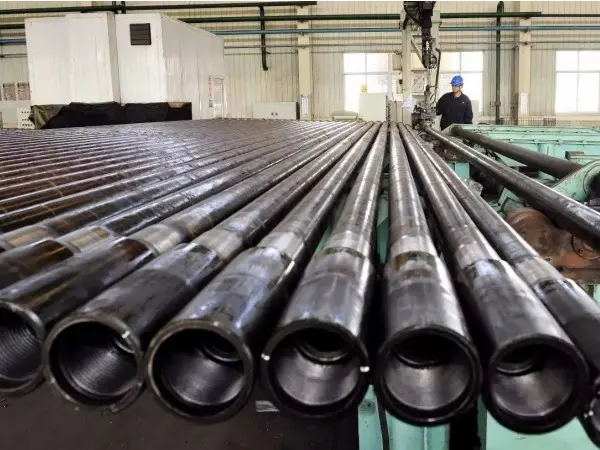

API 5DP Drill Pipe

OD: 60.32mm-168.28mm

WT: 6.45-12.7mm

Length: r1, r2, r3

HHeavy Weight: 2-3/8" to 6-5/8" od, range 2 and 3

Grades: e75, x95, g105, s135

Connection Threads: nc26, nc31, nc38, nc40, nc46, nc50, 5 1/2fh.6 5/8fh.

Pipe Standard: api 5dp e75, x95, g105, s135

Upset Style: iu, eu, ieu

The Wear-Resistant Belt of Tool Joint: tk34,tc2000, arnco 100xt, 200xt, 300xt400xt

Internal Coating Drill Pipe: tk34,dpc,tc2000,tc3000

Connection: nc26, nc31, nc38, nc40, nc46, nc50, 5 1/2fh.6 5/8fh.

Usage: Mine blasting,water well drilling,geothermal wells drilling, fore poling,cooal and nonferrous metal mining projects etc;

Application: Drill pipe is for exploration and development of oil and gas wells.

Standard

Specification

Drill pipe is a hardwearing seamless steel pipe that is rotated to circulate the drilling fluid. This pipe is useful for pumping back the drilling fluid back up the annulus. The annulus is the space in the oil well between the casing and the piping. Easy circulation of the fluid within the well is possible because of the Annulus. The api 5dp drill pipe is subject to axial tension since high torque is required for rotating the down-hole assembly drilling the fluid and circulating it. The OCTG drill pipe needs to be extremely strong as they have to bear a high amount of stress underground. The drill pipe is used at the drilling rigs and they are available in different sizes and different qualities.


API 5DP drill pipe is trailing with screw thread for connecting the drilling rig located at the bottom of surface drilling equipment and mill equipment or bottom outlet device. The purpose is to drill the drilling mud delivered to the drill bit, and drill with the increase, decrease or rotating bottom outlet means. Drill pipe must be able to withstand great external pressure, twisting, bending and vibration. In the mining and oil and gas refining process, the drill pipe can be used multiple times.


Chemical Composition of Drill Pipe(%):

Grade

Chemical composition

P

S

E75

<0.015

<0.003

X95

<0.015

<0.003

G105

<0.015

<0.003

S135

<0.015

<0.003

Tool joint

<0.015

<0.003


Mechanical Properties of Drill Pipe:

Pipe body

Grade

Yield strength

Tensile strength

Elongation

Hardness

Full-size Charpy impact test(J)

min

max

min

min

Psi

MPa

Psi

MPa

Psi

MPa

HBW

HRC

Average

Single

E75

75000

517

105000

724

100000

689

625000A

0.2/U0.9

-

-

80

65

X95

95000

655

125000

862

105000

724

-

-

80

65

G105

105000

724

135000

931

115000

793

-

-

80

65

S135

135000

931

165000

1138

145000

1000

-

-

80

65

Weld zone

Tool joint

120000

827.4

-

-

140000

965.3

0.13

285

-

80

65

E75

75000

517

-

-

100000

689

-

?37

40

27

X95

88000

609

-

-

103000

712

-

?37

40

27

G105

95000

655

-

-

105000

724

-

?37

40

27

S135

105000

724

-

-

115000



?37

40

27

Process

Drill Pipe manufactured strictly according to API 5DP standard
Yield strength: Min 517 Mpa
Tensile strength: Min 724 Mpa
Pipe body material: High quality alloy seamless pipe of E75
Thread treatment: Phosphorization or copper plating

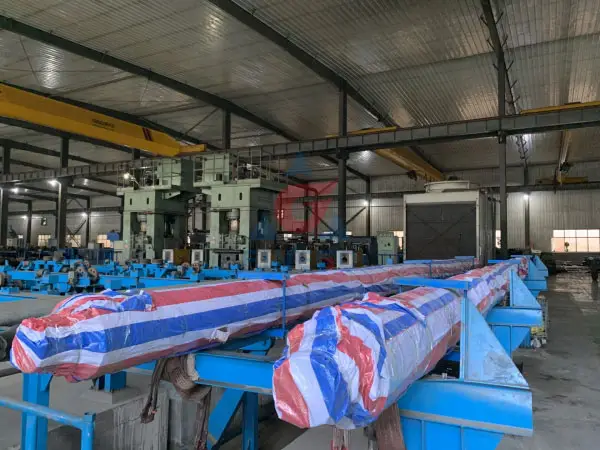

Packing

  • Iron frame packing

    Iron frame packing
